Deploying a VCF 9.1 Supervisor on a One-Node Nested Lab: VLAN Trunking, Large VNA, and the Tiny-to-Small Fix

👁 views • ⏱ 20 min read
Devyn Harrington
Author
Devyn Harrington

At the end of my previous VCF 9.1 homelab article, one physical MINISFORUM MS-A2 was running a complete nested management domain, including VCF Automation. That deployment proved the full stack could run. It also showed me that proving something once and keeping it as the best platform for the next experiment are two different goals.

The next milestone was a healthy vSphere Supervisor backed by NSX VPC networking. Automation and six nested hosts consumed headroom that I now needed for a Virtual Network Appliance (VNA), its load-balancer services, and a Kubernetes control plane. I powered off and deleted the old nested ESXi VMs and Installer, retained the physical ESXi host, outer vCenter, datastore, router, DNS design, and addressing plan, then rebuilt only the three-host management domain. This time the generated JSON omitted VCF Automation completely.

The rebuild was only the beginning. I reconstructed the nested VLAN path across both virtualization layers, deployed a Large VNA, worked around an unsupported AMD Ryzen model check inside that VNA, and followed Supervisor failures through content libraries, vLCM, Spherelet, registry timeouts, and Kubernetes leader-election failures. The decisive change was surprisingly small: resizing the Supervisor control plane from Tiny to Small. After that one-way resize, both Config Status and Host Config Status reached Running.

The final state on August 27: the Supervisor and all three nested hosts were Running, ready for the next VKS phase.

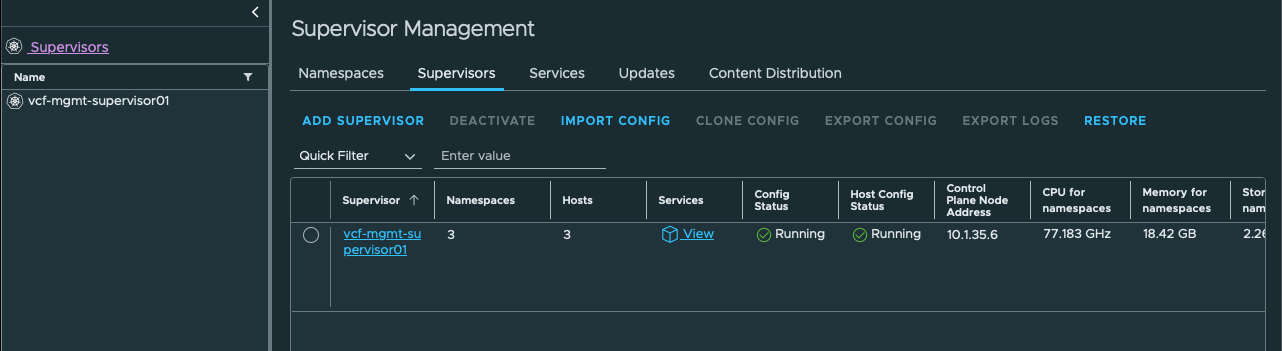

vSphere Supervisor Management showing Config Status and Host Config Status both Running
LAB CONTEXT: This environment runs on one physical AMD Ryzen host. The VNA CPU-model edit, manual Spherelet installation, and silenced virtual-NVMe health finding were troubleshooting steps for this nested lab. They are not production guidance, do not make the underlying hardware supported, and should not replace Broadcom documentation or Support.

Why I Rebuilt the Management Domain
#

The earlier six-host design was useful because it gave me a complete management domain plus three future workload hosts. VCF Automation also worked after several recovery steps. For the Supervisor phase, however, that breadth had become a resource tax. There was no value in continuing to repair and rebalance a topology that no longer matched the immediate goal.

I kept the physical foundation intact:

  • the physical ESXi 9.1 host on the MS-A2
  • the outer vCenter at vc01.lab.devynharrington.com
  • the nested-vcf backing datastore
  • the 192.168.88.0/24 management network
  • the MikroTik gateway, DNS, and established VCF addresses

I recreated inst01 and only nested-esx01 through nested-esx03. Each nested host ended at 24 vCPUs, 80 GB of RAM, a 32 GB vSAN cache disk, and a 1,000 GB thin-provisioned capacity disk. My first 16-vCPU and 64-GB sizing was not enough for the Installer’s capacity checks. A separate attempt to set 24 vCPUs while retaining 16 cores per socket failed because configSpec.numCoresPerSocket must divide the total vCPU count. I corrected the topology to 24 cores per socket.

$DeploymentPhase = "Infrastructure"
$DeployVCFAutomation = $false
$NestedESXiMGMTvCPU = "24"
$NestedESXiMGMTvMEM = "80"
$NestedESXiMGMTCachevDisk = "32"
$NestedESXiMGMTCapacityvDisk = "1000"
The rebuilt management domain used three 24-vCPU, 80-GB hosts and deliberately disabled Automation.
PowerShell deployment summary for three 24-vCPU 80-GB nested hosts with VCF Automation disabled

I used a distinct configuration, devyn-vcf-9.1-no-automation-1tb.ps1, and added an explicit GenerateJson phase to the driver. That let me generate and inspect a fresh management-domain specification without redeploying infrastructure that was already correct or automatically beginning bring-up.

./vcf-automated-fleet-deployment-no-automation-v2.ps1 `
  -EnvConfigFile ./devyn-vcf-9.1-no-automation-1tb.ps1 `
  -Phase GenerateJson

The important JSON check was structural. Setting a fictional enabled: false value inside vcfAutomationSpec would still leave an object the schema could try to validate. For a no-Automation deployment, the generated specification omitted vcfAutomationSpec entirely.

Fresh ESXi deployments also meant fresh TLS certificates. I recollected every SHA-256 fingerprint with openssl and inserted it into a newly named JSON file. One character mattered: the fingerprint for nested-esx01 ended in D8, not DB. Installer validation accepted hosts 2 and 3 but continued rejecting host 1 until I corrected that transcription.

The new hosts had new certificates, so the old JSON thumbprints could not be reused.

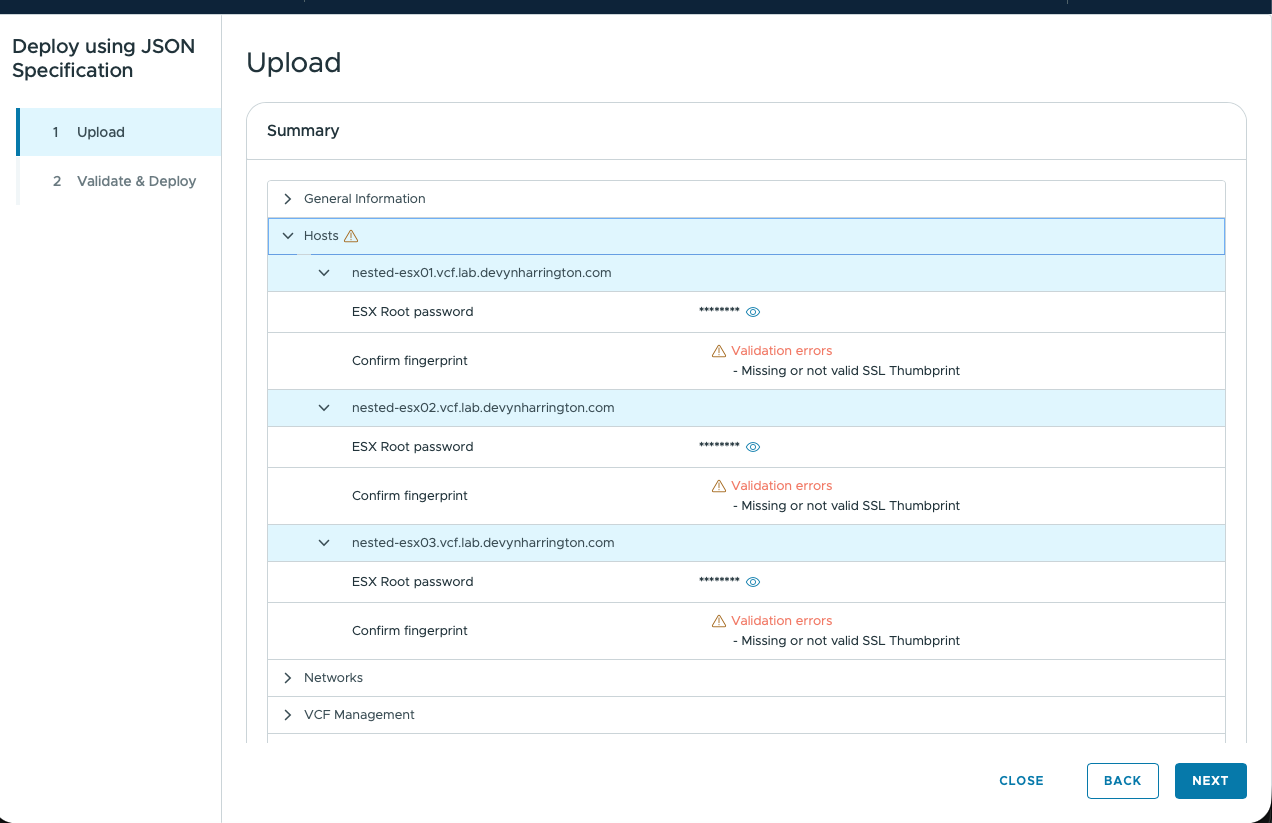

VCF Installer JSON validation showing nested ESXi certificate-thumbprint errors
Installer capacity validation drove the final 24-vCPU and 80-GB sizing rather than guesswork.

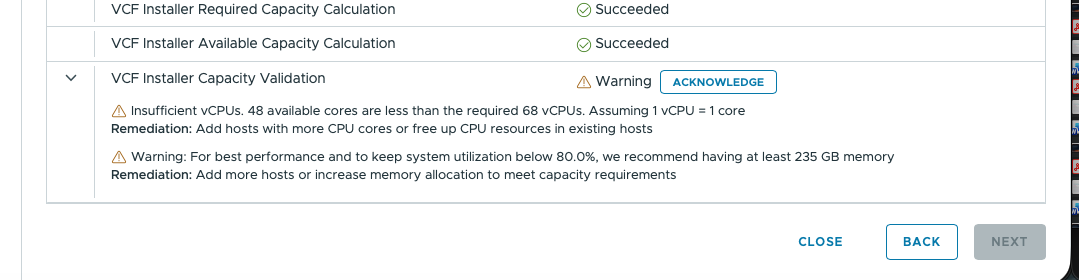

VCF Installer capacity validation for the rebuilt nested management hosts

The Installer then hit a separate lab-specific failure: /tmp/vcf-installer-vsan-hcl.json was missing even though the source vSAN HCL database existed. I validated the source JSON and copied it to the exact temporary path expected by the failed workflow before retrying.

jq empty /nfs/vmware/vcf/nfs-mount/vsan-hcl/all.json
cp --preserve=mode,ownership \
  /nfs/vmware/vcf/nfs-mount/vsan-hcl/all.json \
  /tmp/vcf-installer-vsan-hcl.json
ls -lh /tmp/vcf-installer-vsan-hcl.json
The source HCL JSON was valid; copying it to the missing temporary path allowed me to retry that exact failed workflow.

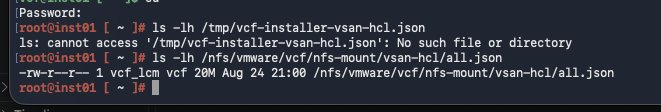

VCF Installer shell showing the validated vSAN HCL file copied to the expected temporary path

I also let the long Monitor VCF Management Services Deployment Task continue. It eventually advanced into Software Depot deployment. As in the previous build, slow progress was not proof of a dead workflow.

The Addressing Plan I Preserved
#

Reusing the earlier addressing made the rebuild easier to reason about, but I still verified every layer instead of assuming a familiar address meant the same function.

Object Name or FQDN Address or role
Physical vCenter vc01.lab.devynharrington.com Outer lab control plane
Nested vCenter vc01.vcf.lab.devynharrington.com VCF management-domain vCenter
VCF Installer inst01.vcf.lab.devynharrington.com 192.168.88.50
Nested ESXi 1 nested-esx01.vcf.lab.devynharrington.com 192.168.88.41
Nested ESXi 2 nested-esx02.vcf.lab.devynharrington.com 192.168.88.42
Nested ESXi 3 nested-esx03.vcf.lab.devynharrington.com 192.168.88.43
NSX Manager nsx01a.vcf.lab.devynharrington.com 192.168.88.61
VNA vna01.vcf.lab.devynharrington.com 192.168.88.90
Supervisor API floating endpoint 192.168.88.91:6443
Supervisor control-plane VM SupervisorControlPlaneVM (1) 192.168.88.180 management; 172.30.0.2 pod/VPC
Supervisor vcf-mgmt-supervisor01 UI showed control-plane node address 10.1.35.6
Network or object VLAN CIDR or gateway Purpose
Management native/outer management 192.168.88.0/24 Physical and nested management
vMotion lab port group 10.1.32.0/24 Nested-host vMotion
vSAN lab port group 10.1.33.0/24 Nested vSAN
NSX TEP 2005 10.1.34.0/24 Overlay underlay, MTU 8940
Distributed external 2006 gateway 10.1.35.1/26 North-south external path
Private VPC n/a 172.30.0.0/16 VPC workload and pod space
Kubernetes services n/a 172.29.0.0/16 Service VIPs; Kubernetes at 172.29.0.1:443
Private Transit Gateway n/a 172.31.0.0/16 Day-0 private TGW allocation

The resulting path looked like this:

flowchart LR
  R["MikroTik
192.168.88.1"] --> O["Physical ESXi + outer vCenter"] O -->|"VM Network
adapters 1/2"| M["Nested management
vmnic0/vmnic1"] O -->|"VCF-Trunk VLAN 4095
adapters 3/4"| U["vmnic2 → uplink1
vmnic3 → uplink2"] U --> T["Host TEPs
VLAN 2005 / 10.1.34.0/24"] T --> D["Distributed TGW"] D --> E["VCF-DTGW-External
VLAN 2006 / 10.1.35.1/26"] D --> V["Large VNA
192.168.88.90"] V --> S["Supervisor API VIP
192.168.88.91:6443"] S --> P["VPC 172.30.0.0/16
Services 172.29.0.0/16"]

Reconstructing Networking Across Two Virtualization Layers
#

Nested networking becomes confusing when a virtual NIC, an ESXi vmnic, a VDS uplink, and a VMkernel adapter are treated as interchangeable. They are four different objects along one path.

Outer nested-VM device Outer port group Device inside nested ESXi Inner VDS assignment Function
Network adapter 1 VM Network vmnic0 bootstrap/legacy, not final transport uplink Management/bootstrap
Network adapter 2 VM Network vmnic1 bootstrap/legacy, not final transport uplink Management/bootstrap
Network adapter 3 VCF-Trunk VLAN 4095 vmnic2 uplink1 Tagged VCF and NSX traffic
Network adapter 4 VCF-Trunk VLAN 4095 vmnic3 uplink2 Tagged VCF and NSX traffic

Outer vCenter: Preserve Management and Add the Trunk
#

On the physical vCenter, every nested ESXi VM had four virtual NICs. I left adapters 1 and 2 on VM Network, moved adapters 3 and 4 to VCF-Trunk, and kept all four connected. The outer VCF-Trunk port group used VLAN ID 4095, VMware’s virtual-guest-tagging mode for passing guest-generated 802.1Q tags.

There was no reason to move the management adapters onto the trunk merely to make the settings symmetrical. Their existing untagged management path worked. The trunk pair had a different job: carry the tagged networks produced inside the nested environment.

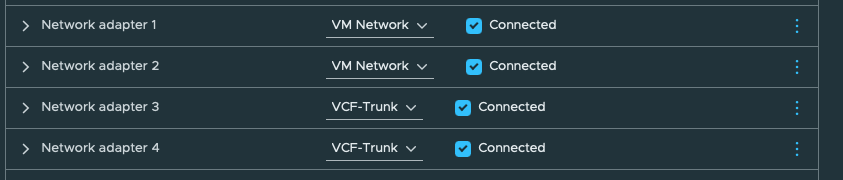

At the outer layer, adapters 1 and 2 retained management while adapters 3 and 4 carried the VLAN-4095 trunk.
Outer vCenter showing nested ESXi adapters 1 and 2 on VM Network and adapters 3 and 4 on VCF-Trunk

Inner vCenter: Map vmnics to Uplinks #

Inside each nested ESXi host, those four virtual devices enumerated as vmnic0 through vmnic3. I used the VDS workflow to replace the original vmnic0/vmnic1 assignments with the trunk-backed transport pair recorded in my deployment notes: vmnic2 to uplink1 and vmnic3 to uplink2 across all three hosts. The final host view below confirms that vmnic2 and vmnic3 are attached to sddc1-cl01-vds01, while vmnic0 and vmnic1 are no longer attached to a switch. This particular view proves the selected transport devices, but it does not display the logical uplink1 and uplink2 slot names.

A vmnic is the ESXi device. An uplink is the VDS’s logical slot for that device. A VMkernel adapter such as vmk1 is an IP endpoint using a port group carried by those uplinks.

I did not blindly migrate vmk0. Losing the working management path while editing the transport path would have turned a controlled network change into a recovery exercise.

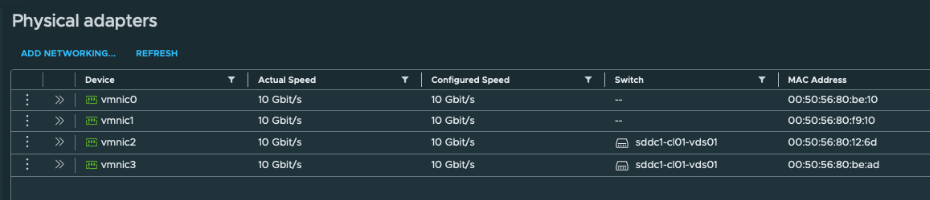

The final host view confirms the trunk-backed transport pair: vmnic2 and vmnic3 are attached to the VDS, while vmnic0 and vmnic1 show no switch. Select the image to inspect it at full resolution.
Cropped nested ESXi physical-adapter table showing vmnic2 and vmnic3 attached to sddc1-cl01-vds01 and vmnic0 and vmnic1 detached

The VMkernel map was equally deliberate:

VMkernel Service Network Host 1 Host 2 Host 3 MTU / stack
vmk0 Management 192.168.88.0/24 .41 .42 .43 1500 / default
vmk1 vMotion 10.1.32.0/24 .101 .102 .103 1500 / vMotion
vmk2 vSAN 10.1.33.0/24 .101 .102 .103 1500 / default
vmk10 NSX TEP VLAN 2005, 10.1.34.0/24 .103 .101 .105 8940 / vxlan
vmk11 NSX TEP VLAN 2005, 10.1.34.0/24 .104 .102 .106 8940 / vxlan
vmk50 system internal 169.254.0.0/16 169.254.1.1 same same auto-created

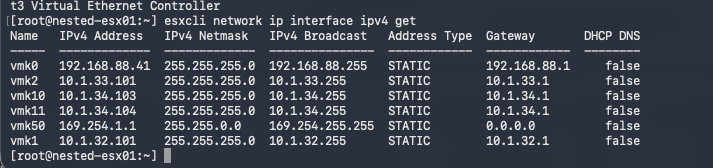

The VMkernel inventory separated the services and confirmed the intended addresses before Supervisor work began.
ESXi shell showing management vMotion vSAN TEP and internal VMkernel addresses

Proving the Underlay Without Overclaiming
#

I verified the physical-adapter and VMkernel state, then ran TEP, vMotion, and vSAN tests from the correct stacks and interfaces.

esxcli network nic list
esxcli network ip interface ipv4 get

vmkping -S vxlan -I vmk10 -d -s 1572 10.1.34.103
vmkping -S vxlan -I vmk11 -d -s 1572 10.1.34.104
vmkping -S vmotion -I vmk1 10.1.32.102
vmkping -I vmk2 10.1.33.102

All TEP pairs returned zero packet loss. The 1,572-byte payload with do-not-fragment demonstrated that the TEP underlay could carry more than a 1,600-byte frame once headers were included. The vMotion and vSAN pings proved reachability on those VMkernel paths.

They did not prove every later Kubernetes service, registry, NAT, or VNA path. That limitation mattered when registry timeouts later tempted me to blame the trunk.

A successful do-not-fragment TEP test proved jumbo transport between these endpoints, not the health of every Supervisor service path.

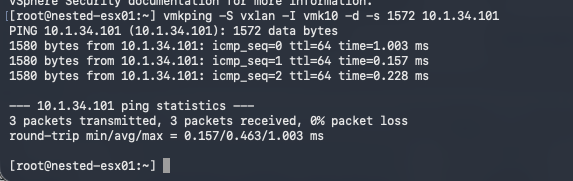

Nested ESXi vmkping over the vxlan stack with a 1572-byte payload and zero loss

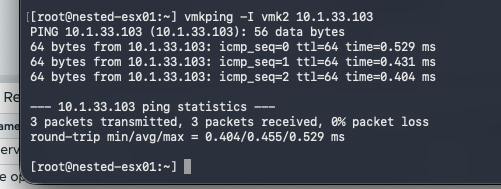

The vMotion and vSAN VMkernel paths also passed with zero packet loss.
Nested ESXi shell showing successful vMotion and vSAN VMkernel pings

Building the Distributed External Path
#

Before activating Supervisor, the distributed Transit Gateway needed a real exit and the VPC connectivity profile needed a service gateway, external addresses, and NAT.

Under Configure > Networking > External Connections, I created a Distributed VLAN Connection, not a centralized Tier-0/Edge connection:

Field Value
Name VCF-DTGW-External
Type Distributed VLAN Connection
Dedicated to Subnet Off
VLAN ID 2006
Gateway CIDR IPv4 Address 10.1.35.1/26

The completed object showed Success, one attached Transit Gateway, and the expected VLAN/gateway pair.

VCF-DTGW-External connected the distributed Transit Gateway to VLAN 2006 at 10.1.35.1/26.
vSphere distributed external connection VCF-DTGW-External showing Success on VLAN 2006

The initial Default VPC Connectivity Profile still reported four incompatibilities: Service Gateway disabled, automatic SNAT disabled, no external IP block, and no Edge/VNA resource path. I created VCF-External-IP-Block, retained Day0 Private Tgw Ip Block (172.31.0.0/16), selected vna-cluster01, enabled north-south services, enabled Default Outbound NAT, and selected the external block for that NAT.

The incompatibility dialog made the missing north-south prerequisites explicit.

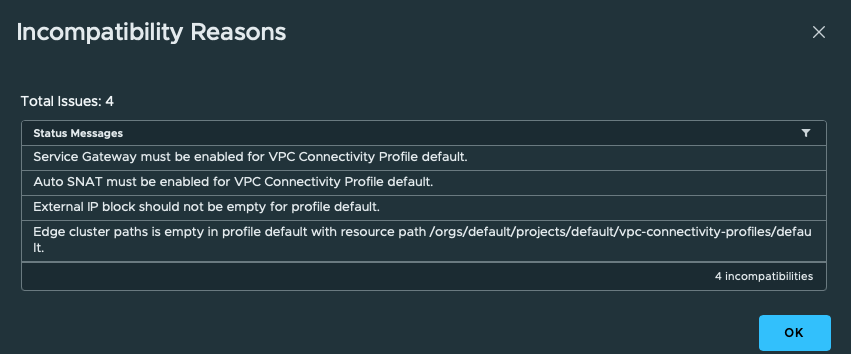

Default VPC Connectivity Profile showing four incompatibility reasons before VNA NAT and external IP configuration

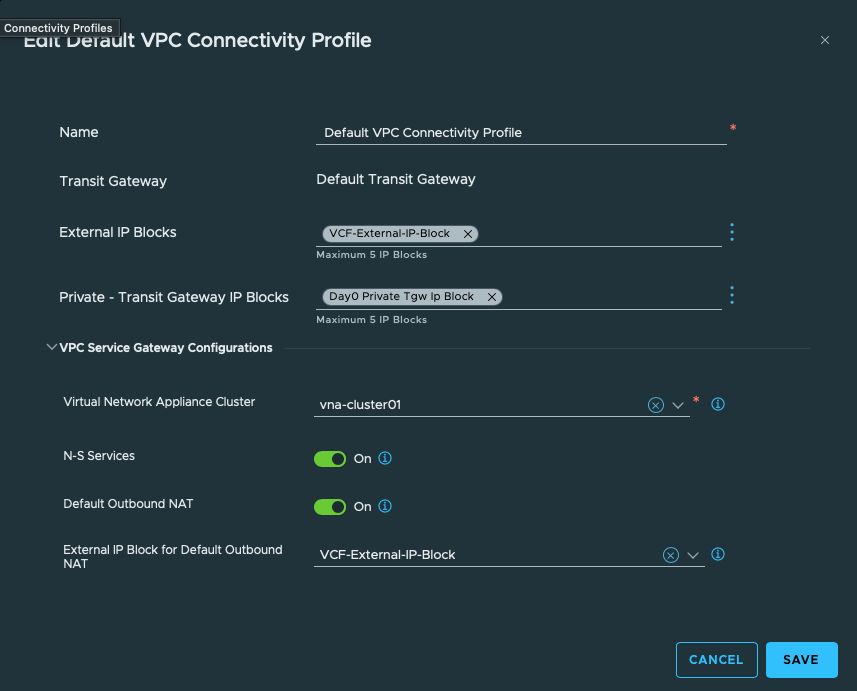

Selecting the VNA, north-south services, outbound NAT, and external block cleared the profile incompatibilities.
Default VPC Connectivity Profile with vna-cluster01 north-south services outbound NAT and external IP block selected

Broadcom’s Supervisor with VPC troubleshooting guidance documents how incomplete workload networking, routing, and MTU can surface as image-registry and core-service failures. That is why I completed these objects and validated the trunk before asking Supervisor to deploy.

Why I Deployed a Large VNA
#

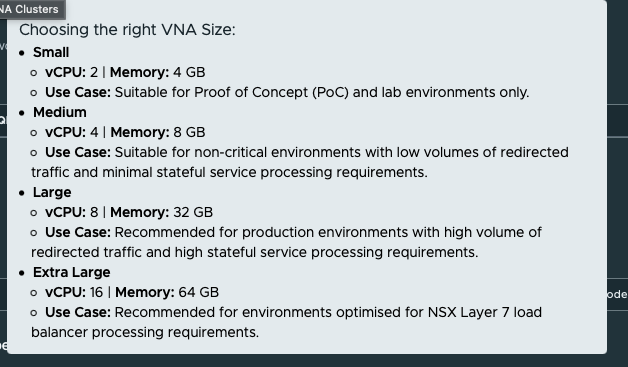

The form factors shown by the VNA wizard were Small at 2 vCPUs/4 GB, Medium at 4 vCPUs/8 GB, Large at 8 vCPUs/32 GB, and Extra Large at 16 vCPUs/64 GB. A previous Small VNA reached 100 percent logical load-balancer capacity even with a Tiny Supervisor. A Medium attempt still did not produce a successful result in this lab. I therefore used Large for the repeatable final attempt.

Logical load-balancer capacity is not the same as guest CPU utilization. It is a capacity and reservation model. Broadcom’s LB Edge Capacity alarm explanation describes the alarm as capacity usage against the node’s load-balancer capacity, with a default warning threshold of 80 percent. The Large profile prevented the earlier capacity blocker here; it does not establish Large as a universal Supervisor requirement.

I selected Large, 8 vCPUs and 32 GB, after the smaller profiles failed to produce a usable result in this lab.
VNA form-factor descriptions for Small Medium Large and Extra Large
VNA setting Final value
Cluster vna-cluster01
Node form factor Large, 8 vCPUs and 32 GB RAM
Node FQDN vna01.vcf.lab.devynharrington.com
Management address static 192.168.88.90/24
Gateway 192.168.88.1
vSphere cluster vcf-mgmt-cl01
Datastore vsanDatastore
Management port group DVPG_FOR_VM_MANAGEMENT

A one-node VNA cluster was acceptable for this one-physical-host proof of concept. It does not provide physical high availability. Adding a second virtual node on the same physical MS-A2 would not protect the service from failure of that host.

The saved deployment contained one Large VNA node in vna-cluster01, appropriate for the physical constraints but not physically redundant.

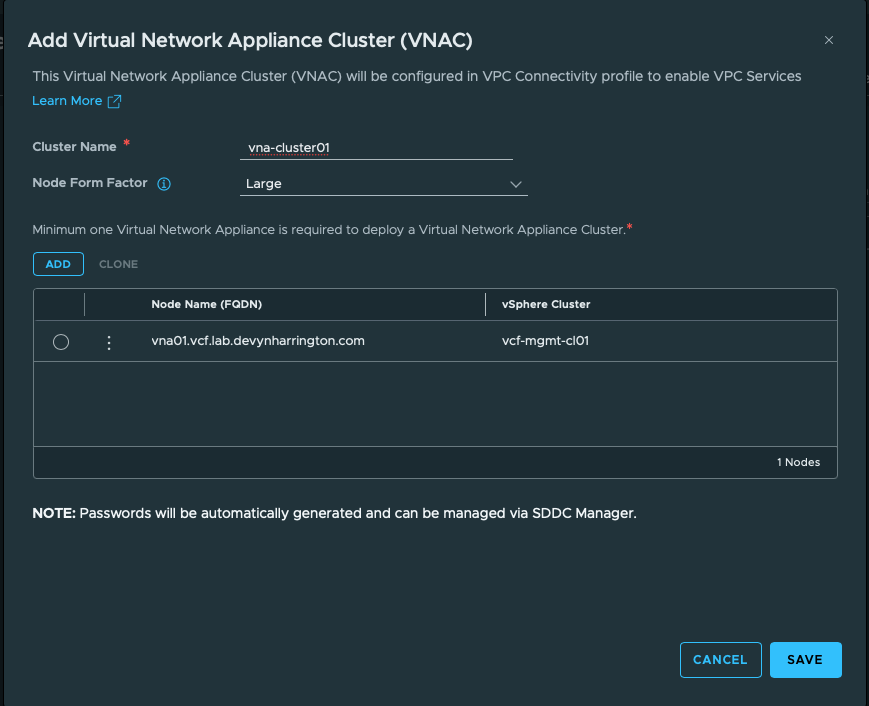

Add Virtual Network Appliance Cluster summary showing a Large vna01 node

The Unsupported Ryzen CPU Check
#

The appliance booted on the AMD Ryzen 9 9955HX, but NSX Edge configuration stopped with:

NSX Edge configuration has failed. Unsupported CPU: AMD Ryzen 9 9955HX 16-Core Processor

The check in /opt/vmware/nsx-edge/bin/config.py accepted AMD EPYC model strings but rejected Ryzen. I backed up the script before changing anything.

cp -p /opt/vmware/nsx-edge/bin/config.py \
  /opt/vmware/nsx-edge/bin/config.py.pre-ryzen-workaround
ls -lh /opt/vmware/nsx-edge/bin/config.py*
grep -n -A2 -B2 'Unsupported CPU|AMD EPYC' \
  /opt/vmware/nsx-edge/bin/config.py

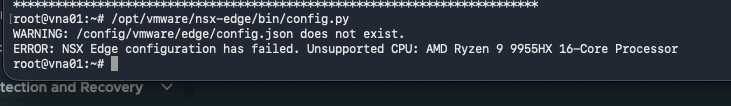

The VNA rejected the Ryzen model string even though the appliance had booted.
VNA console showing NSX Edge configuration failed because the AMD Ryzen CPU was unsupported

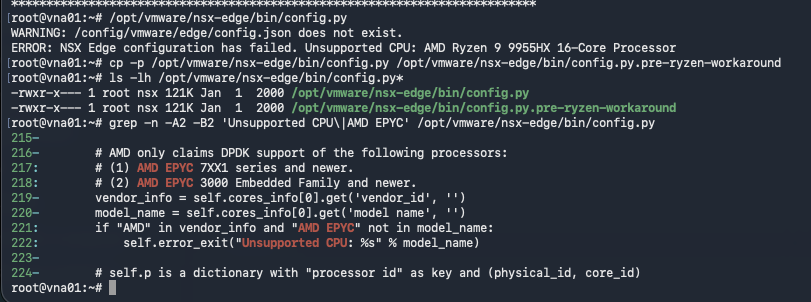

The lab-only edit commented the conditional model-name check and its self.error_exit call around lines 221 and 222. I did not remove the backup. I verified the edit and rebooted the VNA because retrying the service without a reboot did not re-run the full initialization path.

I preserved the original file and bypassed only the model-string enforcement in this unsupported nested lab.
VNA shell showing the backed-up config.py and commented Ryzen CPU model rejection lines

After reboot, /config/vmware/edge/config.json existed. The service_datapath, service_dispatcher, service_rcpm, service_rsd, and service_nsxa containers were Up, and systemctl --failed returned no failed units. A temporary L2 configuration failure appeared during convergence, and the node briefly showed Degraded/Down while HA was Admin Down on the single-node cluster. I watched it rather than rebuilding again. Manager, controller, tunnel, proxy, and storage connectivity recovered, and the VNA converged to 1 Up / Success.

The reboot re-ran initialization; the service containers were Up and systemd reported no failed units.

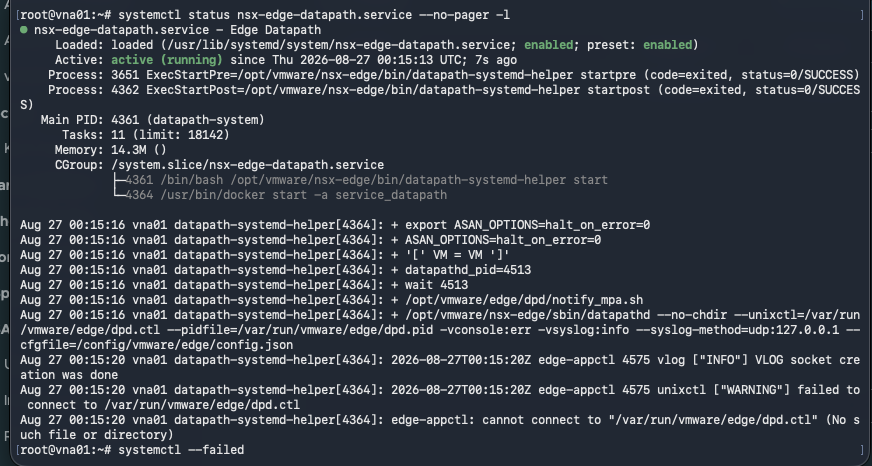

VNA shell showing NSX service containers running and no failed systemd units after reboot

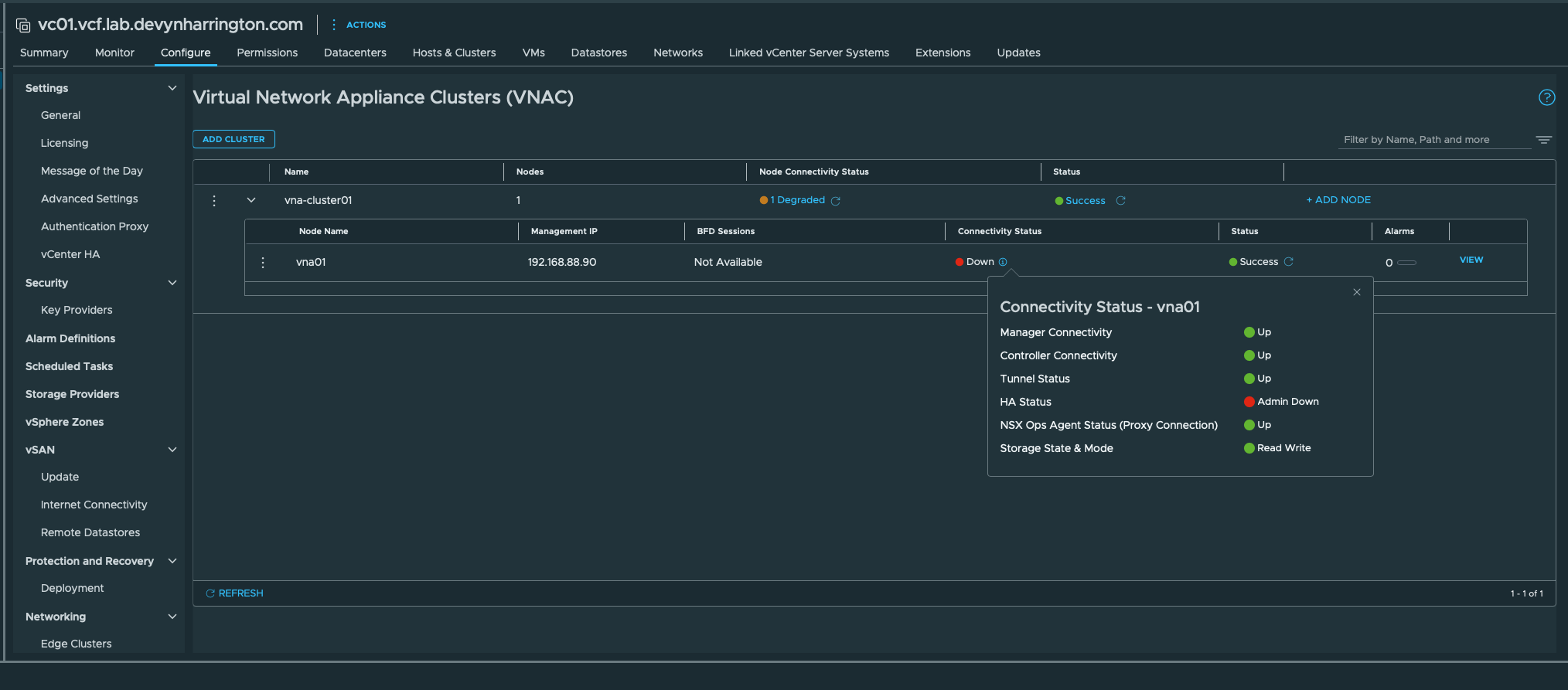

The transient degraded state cleared and the one-node VNA cluster reached 1 Up / Success.
VNA cluster vna-cluster01 showing one node Up and deployment status Success

Preparing the Supervisor
#

I created a subscribed Supervisor content library on vsanDatastore with immediate download from:

https://wp-content.broadcom.com/supervisor/v1/latest/lib.json

The vSphere Client initially appeared empty. Creating supervisor-library-v2 while troubleshooting did not solve that display delay, so I used PowerCLI to verify the state behind the UI. It showed the original supervisor-library, the duplicate, a separate Kubernetes Service Content Library, Supervisor images supervisor-9.0.0.0100-24845085 and supervisor-9.0.2.0100-25262241, and Spherelet items for Kubernetes versions 1.28 through 1.32.

Get-ContentLibrary |
  Format-Table Name, Type, SubscriptionUrl -AutoSize

$library = Get-ContentLibrary -Name supervisor-library-v2
Get-ContentLibraryItem -ContentLibrary $library |
  Format-Table Name, Type, Size -AutoSize

Once the client caught up, I assigned the original 11.8-GB supervisor-library under Supervisor Management > Content Distribution. The duplicate was not part of the final deployment.

PowerCLI proved the subscribed libraries and items existed even while the vSphere Client appeared empty.

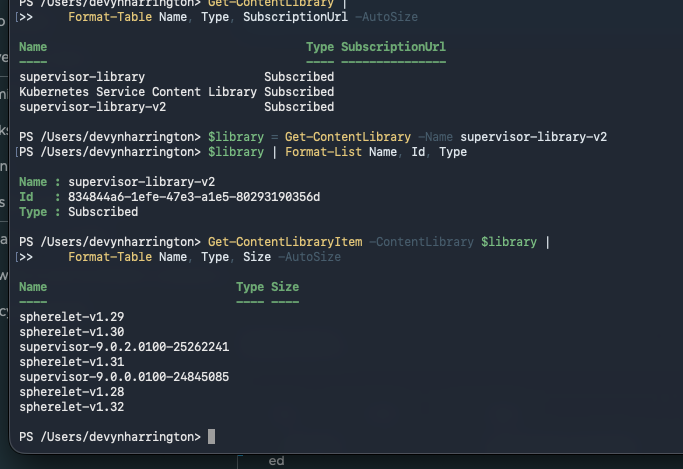

PowerCLI showing subscribed Supervisor libraries and downloaded Supervisor and Spherelet items

The Supervisor wizard used these values:

Wizard area Value
Name / cluster vcf-mgmt-supervisor01 / vcf-mgmt-cl01
Networking VCF Networking with VPC
Storage vcf-mgmt-cl01 - Optimal Datastore Default Policy - AutoRAID for control plane, ephemeral disks, and image cache
Management network DHCP on DVPG_FOR_VM_MANAGEMENT
API floating IP 192.168.88.91
DNS / search / NTP 192.168.88.1 / vcf.lab.devynharrington.com / time.google.com
Private VPC CIDR 172.30.0.0/16
Service CIDR 172.29.0.0/16

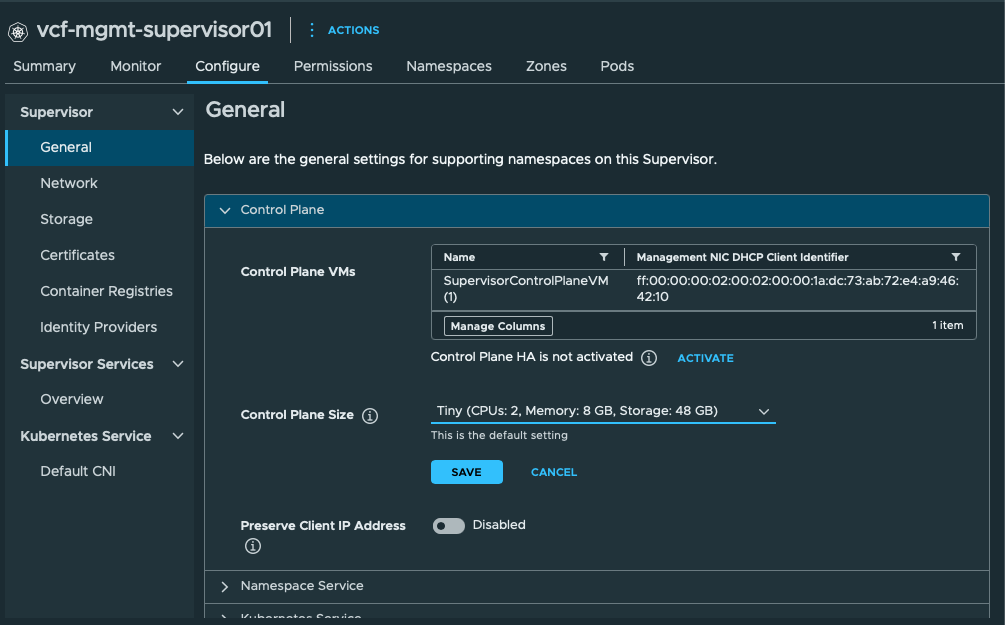

Initial control-plane size Tiny, 2 vCPUs, 8 GB RAM, 48 GB storage
HA Disabled; one control-plane VM

I left the optional API Server DNS Name blank because the evidence did not include a deliberately created DNS record for it. I also exported the configuration before selecting Finish so I would have the exact inputs for comparison and a future deployment.

The exported wizard state captured the Tiny control plane, DHCP management network, API VIP, and VPC/service CIDRs before activation.

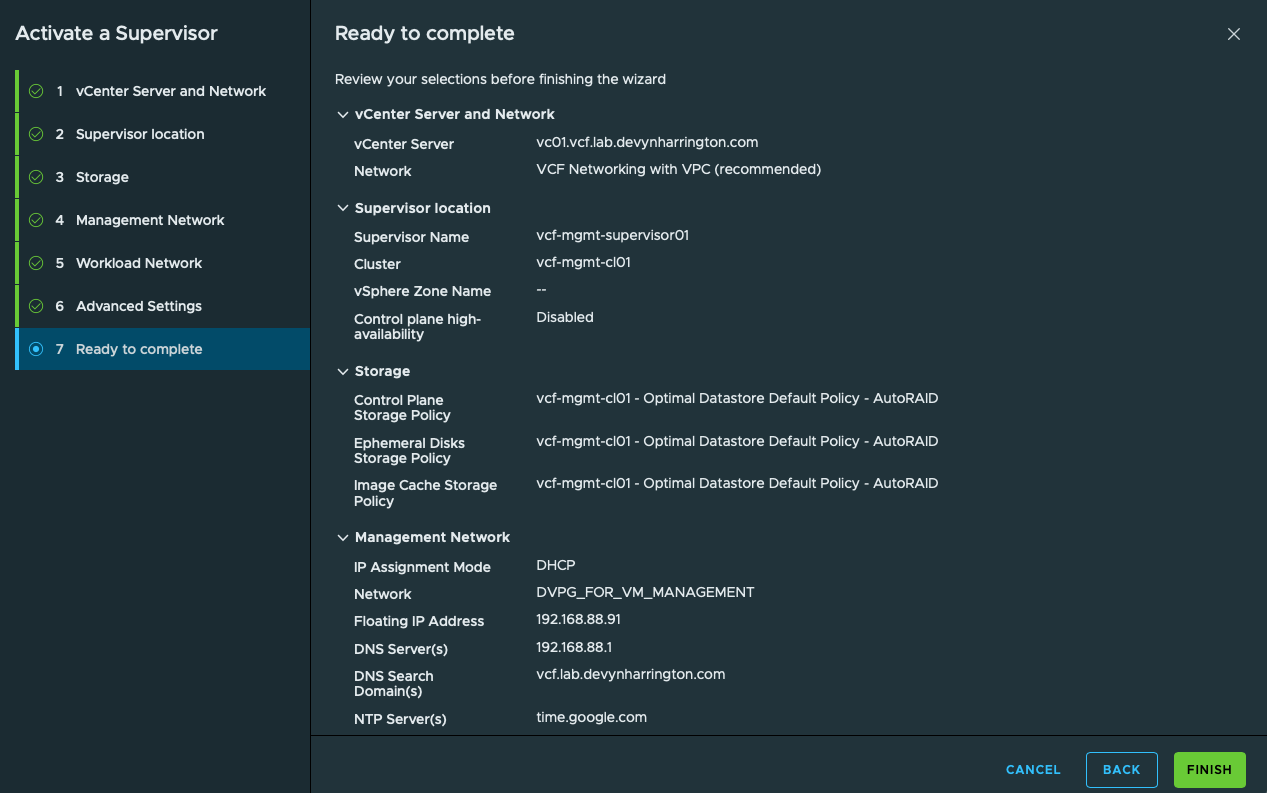

Supervisor activation summary with storage management workload and advanced settings

Following the Supervisor Failures
#

The deployment created its control-plane VM, configured management and workload networking, and configured the Supervisor API load balancer. Then core services began failing. tkg.vsphere.vmware.com and velero.vsphere.vmware.com reported timeouts reaching the internal registry:

docker-registry.kube-system.svc:5000 ... i/o timeout

Those symptoms resemble the network failure described in Broadcom KB 452173, so it was reasonable to re-check the network. It was not reasonable to declare that the root cause without reconciling the successful TEP tests, working API VIP, and later in-cluster observations.

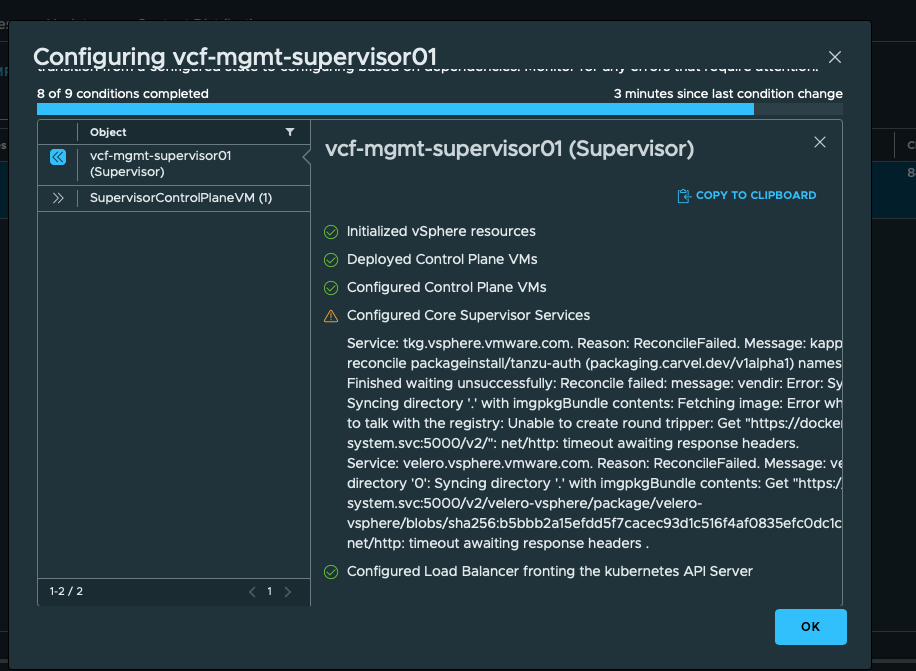

Core Supervisor services failed while attempting to reach the internal registry, initially pointing back toward the network.
Supervisor core service configuration showing tanzu-auth and Velero reconciliation failures

What HTTP 401 Proved
#

I repeatedly called the API VIP at 192.168.88.91:6443:

for i in $(seq 1 10); do
  curl -k -sS --connect-timeout 5 --max-time 15 -o /dev/null \
    -w 'HTTP=%{http_code} TOTAL=%{time_total}s\n' \
    https://192.168.88.91:6443/readyz
  sleep 2
done

The endpoint quickly returned HTTP 401. That is an authentication rejection, not a connection failure. It proved that my client could reach an HTTPS server at the API VIP and receive an application response. It did not prove every internal service request was healthy.

PowerCLI discovered SupervisorControlPlaneVM (1) and its management address, 192.168.88.180. That was separate from the floating API address .91. The UI also showed the control-plane node at 10.1.35.6, while the VM carried 172.30.0.2 on the VPC/pod side. Treating those values as one interchangeable “Supervisor IP” would have obscured the route being tested.

A fast 401 response showed that the API VIP was reachable even though the unauthenticated request was rejected.

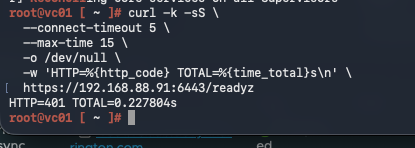

curl to the Supervisor API readyz endpoint returning HTTP 401

Host Configuration Stopped at 0 of 12
#

All three hosts stalled at Installed and Started Kubernetes Node Agent on the ESXi Host, with Host Configuration at 0 of 12 conditions. Spherelet was not running, /etc/vmware/spherelet contained zero-byte configuration files, and its log was empty.

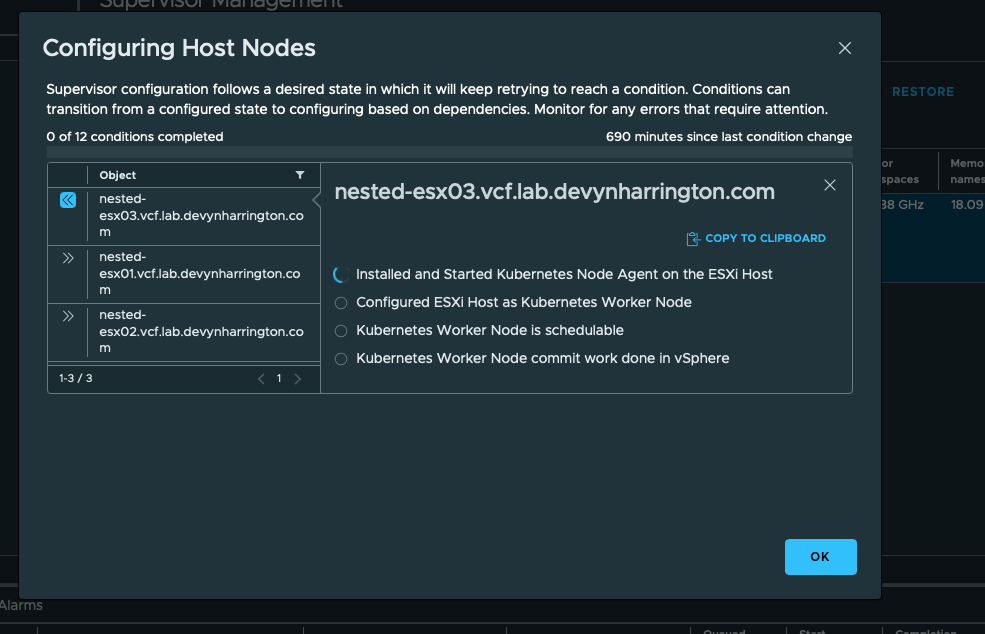

The Supervisor control plane existed, but no nested host had completed the first host-configuration condition.
Supervisor Configuring Host Nodes dialog showing all three nested hosts stalled at 0 of 12 conditions
Spherelet had no usable configuration, which explained why manually starting a service was not enough.

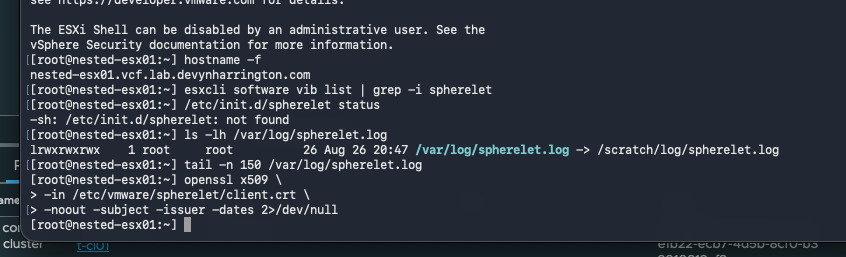

Nested ESXi shell showing Spherelet absent or stopped with zero-byte configuration files

The desired cluster image was missing the Spherelet VIB required by VMware vSphere with Kubernetes - Supervisor Cluster 9.0.1.32.5.0-25510706. vLCM reported remediation was required. Its pre-check also warned that the custom nested-esxi-customization VIB could be removed and that the virtual NVMe device failed hardware compatibility. Broadcom’s vLCM VIB behavior guidance reinforces why image remediation and manually added packages need to be evaluated together. A blind remediation could remove the VIB that makes this nested appliance usable.

The desired-state image required remediation, but the pre-check also warned about nested customizations and hardware compatibility.

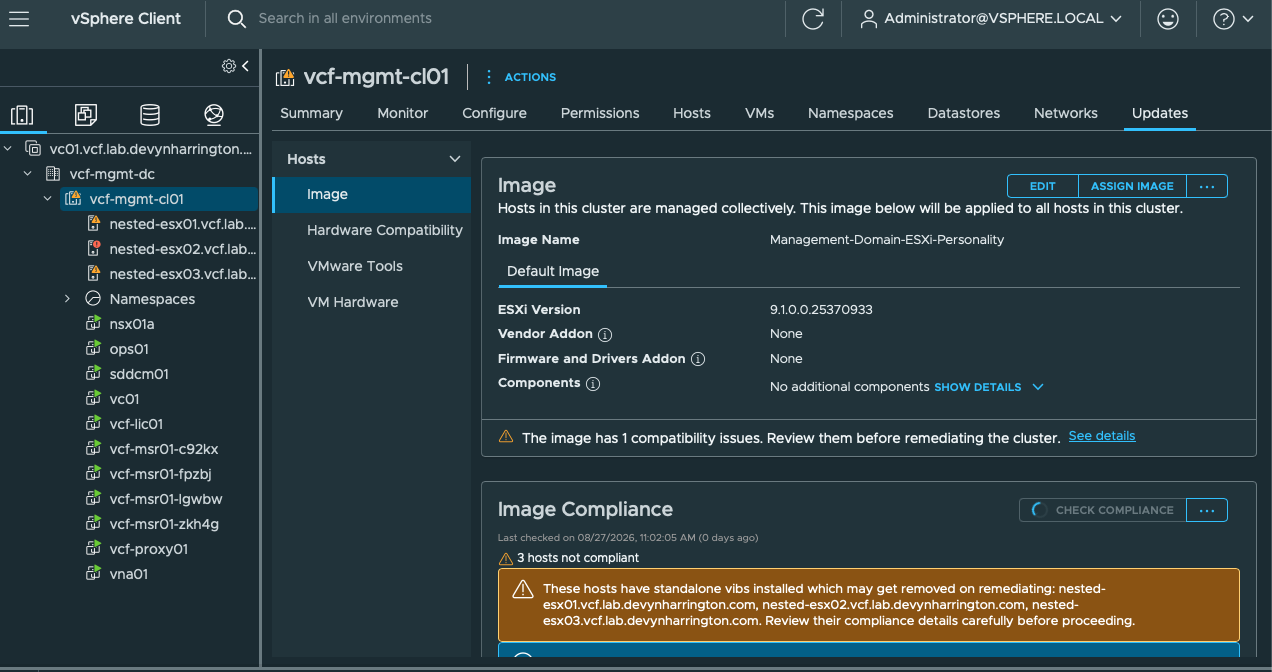

vSphere Lifecycle Manager image compliance warning for the Supervisor solution and nested ESXi hosts

I found the exact Spherelet VIB in the vCenter patch store, copied it to nested-esx01, and installed it as a diagnostic step:

/storage/updatemgr/patch-store/hostupdate/vmw/vib20/spherelet/
VMware_bootbank_spherelet_9.0.1.32.5.0-25510706.vib
esxcli software vib install \
  -v /tmp/VMware_bootbank_spherelet_9.0.1.32.5.0-25510706.vib
esxcli software vib list | grep -i spherelet

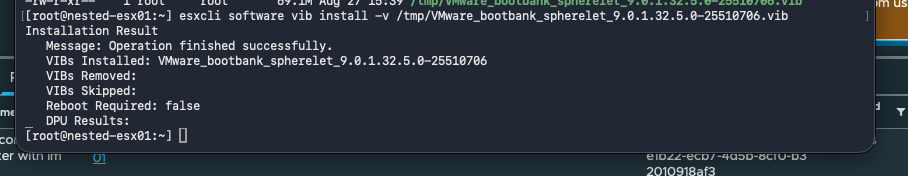

The exact VIB installed without a reboot, but the Spherelet and WCP Management Proxy services remained stopped.
Nested ESXi shell showing successful installation and listing of the Spherelet VIB

The installation succeeded, yet the services stayed stopped and the configuration files remained empty. That result was useful: the VIB was only one piece. The supported desired-state workflow still had to create credentials and configuration and start the agents. Manual package installation was not the solution.

The Nested NVMe Finding
#

The vSAN health check NVMe device is VMware certified flagged the VMware virtual NVMe controller, VID 15ad and DID 07f0, on all three hosts. This was intentionally emulated hardware in a nested lab. I silenced that specific finding so it would not continue gating the lab workflow.

The warning described the virtual controller accurately; silencing it prevented repeated lab gating but did not certify the device.

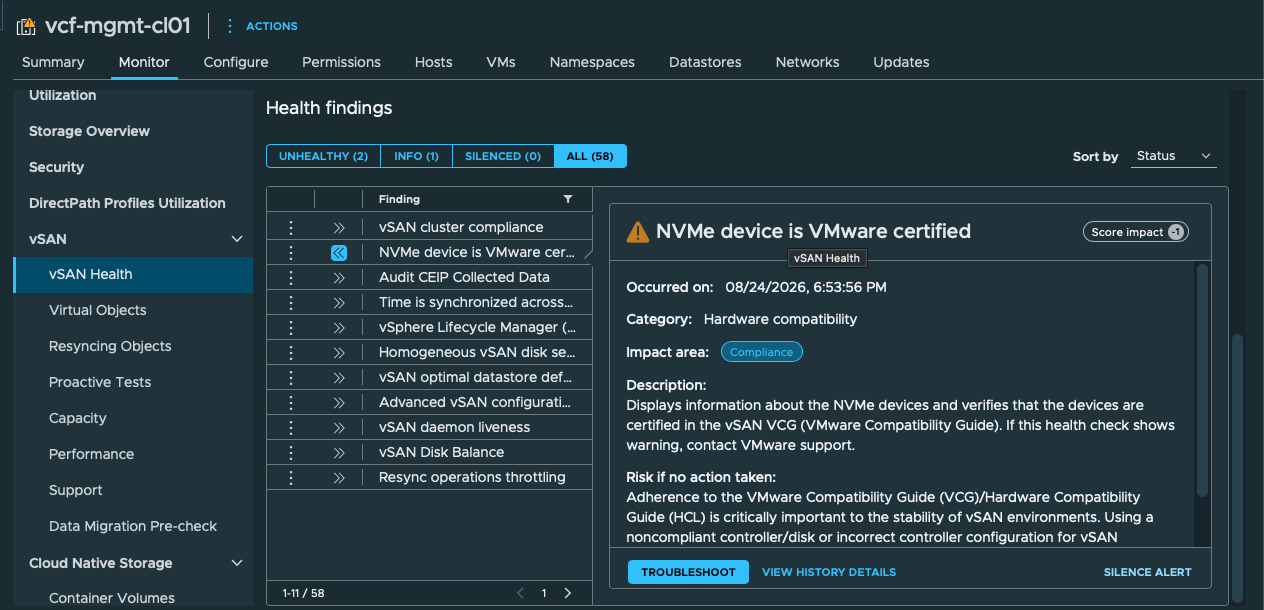

vSAN health finding showing the VMware virtual NVMe controller as not certified on three nested hosts

Silencing an alarm changes its reporting behavior. It does not add a controller to the hardware compatibility list or make the design suitable for production. After clearing that nested-only gate, I let the image-solution and compliance workflows continue without blindly applying a full remediation that could remove nested-esxi-customization.

The Decisive Evidence Was Inside the Control Plane
#

Once host configuration progressed, TKG still oscillated among Configuring, Reconciling, and ReconcileFailed. I moved the investigation into the control-plane VM.

The in-cluster kubernetes service was 172.29.0.1:443, with endpoint 10.1.35.6:6443. A 30-iteration request loop to https://172.29.0.1:443/readyz mostly returned rapid 401 responses. All four Kubernetes nodes were Ready, none reported MemoryPressure, DiskPressure, or PIDPressure, and kube-proxy was Running.

The internal service path worked repeatedly between stalls, which argued against a total routing failure.

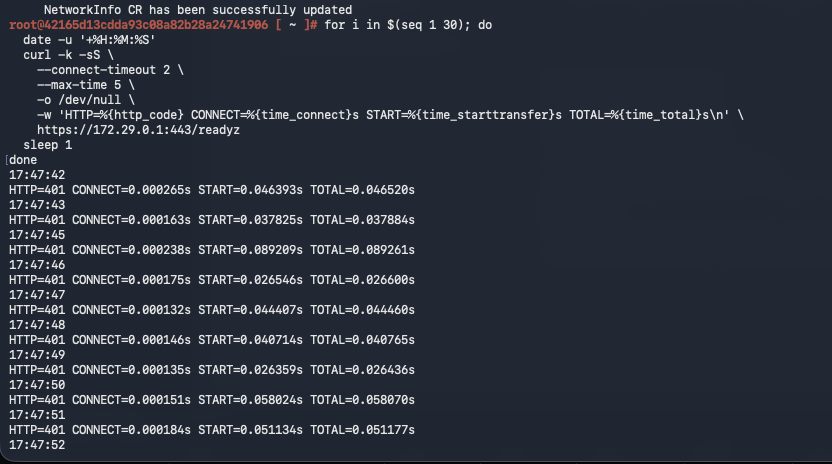

Supervisor control-plane shell repeatedly reaching the internal Kubernetes service endpoint

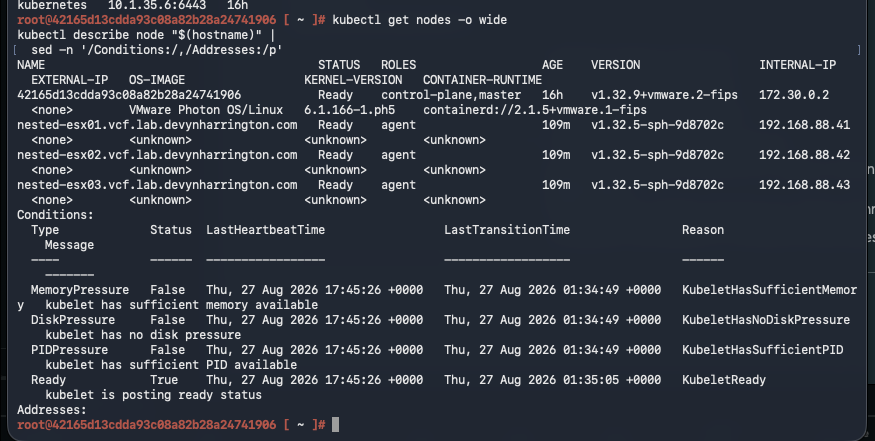

Kubernetes node conditions were healthy even while controllers and packages remained unstable.
kubectl node output showing Supervisor nodes Ready with no memory disk or PID pressure

The controller evidence told a different story. Calls to 172.29.0.1:443 sometimes exceeded their deadlines, controllers lost leader election, probes timed out or received connection refused, and capi-kubeadm-bootstrap had restarted 168 times.

Failed to update lock optimistically ... context deadline exceeded
failed to renew lease ... leader election lost
Restart Count: 168
Back-off restarting failed container manager

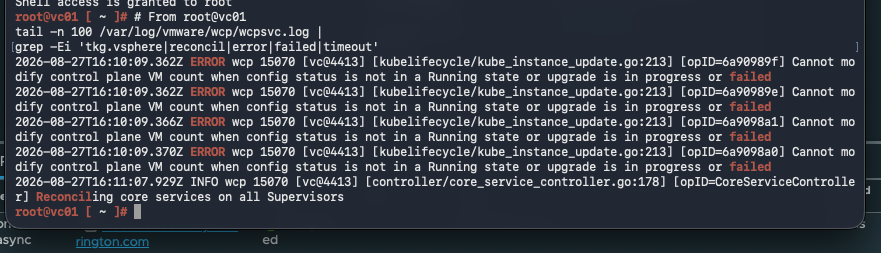

Controllers were losing leases because API requests missed their deadlines, even though the endpoint also answered successfully between stalls.
Supervisor controller logs showing Kubernetes API timeouts and leader-election loss

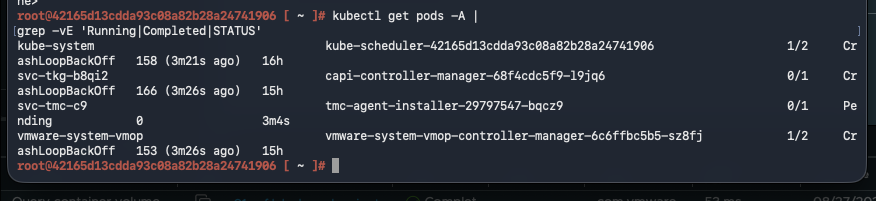

The restart counts and failed health probes turned an intermittent UI symptom into evidence of control-plane instability.
kubectl pod output showing failing Supervisor pods and high restart counts

The Tiny control-plane VM had only 2 vCPUs and 8 GB of RAM. During reconciliation, its load average ranged roughly from 19 to 35. CPU0 reached 100 percent, CPU1 approached 90 percent, and approximately 6.8 of 7.7 GiB was in use. This pattern explained the contradiction: networking could work, but an overloaded API server could still answer too slowly for leader leases, probes, registry pulls, and reconciliation deadlines.

I treat that as the root cause strongly supported by this lab’s evidence, not as a universal product statement. The important correlation was sustained pressure, repeated controller failure, intermittent success on the same endpoints, and convergence immediately after adding control-plane resources.

The Tiny-to-Small Fix
#

Under vcf-mgmt-supervisor01 > Configure > General > Control Plane, I changed the control-plane size from Tiny to Small:

Size vCPU Memory Storage
Tiny, original 2 8 GB 48 GB
Small, final 4 16 GB 48 GB
Tiny was the original choice, but two vCPUs were saturated during package and service reconciliation.
Supervisor General settings showing the original Tiny two-vCPU eight-GB control-plane size

The UI warned that I would not be able to scale down to a smaller size after saving. I accepted that one-way decision and let desired state reconfigure the VM. I did not reboot or delete the control-plane VM manually.

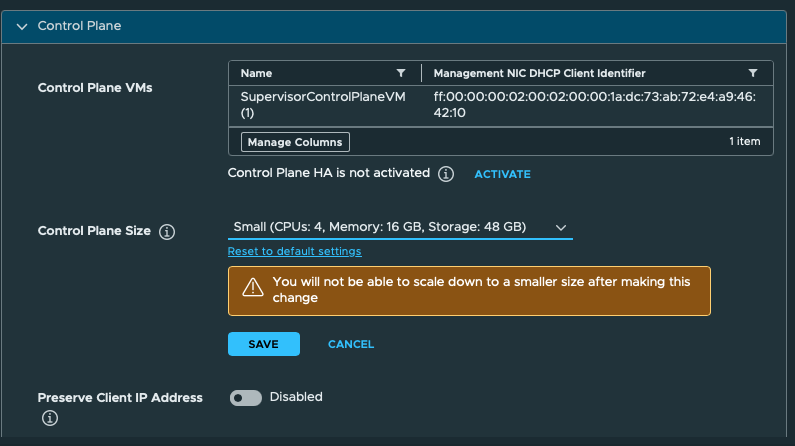

The resize was a one-way UI operation, so I acknowledged the warning before saving.
Supervisor control-plane resize dialog warning that the size cannot be scaled back down
Small doubled the control plane to 4 vCPUs and 16 GB while retaining 48 GB of storage.

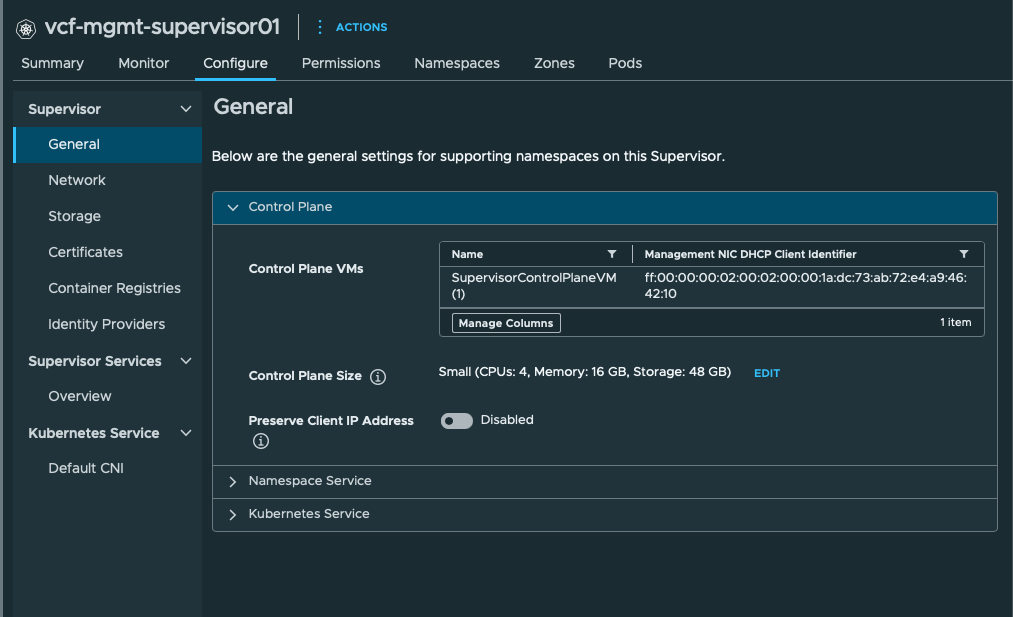

Supervisor General settings showing the Small four-vCPU sixteen-GB control-plane size

The status did not become perfect instantly. During reconciliation, completed conditions temporarily regressed from 8 of 9 to 7 of 9 while the control-plane VM and workload network were reconfigured. Then the core services turned green, the control-plane condition completed, and host configuration converged across all three nested ESXi hosts.

That progression is why resizing is the primary resolution narrative. A Large VNA had removed the earlier logical load-balancer-capacity blocker. The distributed external connection, VPC profile, NAT, trunk, and TEP paths were already in place. Clearing the nested hardware gate allowed desired state to move forward. The Tiny-to-Small change finally gave the Kubernetes control plane enough headroom to keep its API and controllers responsive through reconciliation.

Final Validation
#

Before calling the deployment complete, I verified the outcome at each layer:

  • vna-cluster01 showed one node Up and deployment state Success.
  • VCF-DTGW-External showed Success on VLAN 2006 with gateway 10.1.35.1/26.
  • the Default VPC Connectivity Profile had its VNA, north-south services, external IP block, and outbound NAT.
  • the Supervisor API load balancer was configured and 192.168.88.91:6443 responded.
  • core Supervisor services reached a healthy state.
  • all three nested hosts completed their host-configuration conditions.
  • Config Status became Running.
  • Host Config Status became Running.

The Large VNA prevented the load-balancer capacity failure I observed with smaller profiles in this lab. The Small Supervisor control plane resolved the severe CPU pressure and API instability that remained. Neither observation means every VCF 9.1 Supervisor needs those sizes; they are the known-good choices for this one-node nested design.

What I Learned
#

  • Rebuild when the old topology no longer serves the next objective. Removing Automation created the headroom I needed for VNA and Supervisor work.
  • Keep the outer virtual NIC, inner vmnic, VDS uplink, and VMkernel layers conceptually separate. Similar names do not make them the same object.
  • A passing vmkping proves the tested path. It does not certify every application path above it.
  • An HTTP 401 can be positive connectivity evidence when authentication is intentionally absent.
  • Treat manual VIB installation as a diagnostic unless the complete desired-state workflow also writes configuration and starts the service.
  • Silencing a nested hardware alarm does not make virtual hardware certified.
  • Logical VNA load-balancer capacity and observed guest CPU are different measurements.
  • Intermittent endpoint success plus missed leases, high restart counts, and extreme load can point to resource starvation rather than a total network outage.
  • Preserve the state transitions. The brief regression after resizing was part of healthy reconciliation, not a reason to interrupt it.

The lab now has what I was working toward: a functioning VCF 9.1 Supervisor on a single physical host, with VPC networking, north-south services, a healthy VNA, and all nested hosts configured. The next article will use that foundation to deploy and validate vSphere Kubernetes Service rather than spending another round rebuilding the platform underneath it.
