Deploying a Complete VCF 9.1 Management Domain: Nested ESXi, NSX Recovery, and Automation

This was the biggest milestone in my VCF 9.1 homelab so far. One physical MS-A2 runs the outer ESXi host and vCenter, and that single node now hosts the entire nested VCF environment. In the previous article, I prepared that physical layer with 128 GB of DRAM, even though MINISFORUM officially lists 96 GB as the maximum, and configured 1:4 NVMe Memory Tiering. ESXi then reported roughly 628 GB of total memory capacity for the lab.

For this phase, I customized William Lam’s Fleet lab automation to deploy the VCF Installer and six nested ESXi VMs, then generate the initial management-domain JSON. Three nested hosts became the management-domain cluster, while the other three were staged for a future workload domain. The VCF Installer then used that specification to configure the management vCenter, vSAN, NSX, SDDC Manager, VCF Operations, Management Services, and Automation.

It was not a single-click deployment. I recovered two hosts from broken NSX state, corrected an overcorrection from 32 to 16 vCPUs that left no host large enough for Automation’s 24-vCPU VM, fixed an address overlapping its runtime pool, removed stale Fleet metadata, and learned that an apparently frozen deployment can still be working.

Close  ×

The Starting Point

#

The outer environment consisted of one physical MS-A2 running ESXi 9.1, an initial vCenter at vc01.lab.devynharrington.com, and a management network on 192.168.88.0/24. A MikroTik router supplied DNS for the isolated lab. The 4 TB nested-vcf datastore held the appliances and nested hosts, while the dedicated NVMe memory tier gave the physical ESXi host roughly 628 GB of reported memory capacity.

I intentionally did not enable DRS on the outer cluster. With one physical host there was nowhere for DRS to move a VM, so it offered no placement value at this stage.

Preparing the Physical ESXi Host

#

Before launching the nested build, I followed William Lam’s VCF 9.1 lab guidance for AMD Ryzen systems. I set the kernel entropy source, retained the 400 percent NVMe Memory Tiering configuration from the previous build day, and added the documented APIC virtualization workaround to /etc/vmware/config:

esxcli system settings kernel set -s entropySources -v 2

monitor_control.disable_apichv = "TRUE"

I explicitly persisted the configuration and rebooted the physical host:

/sbin/auto-backup.sh
reboot

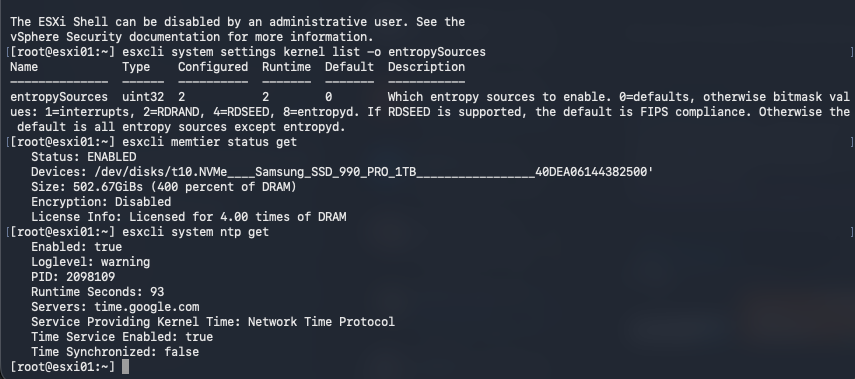

After the reboot I verified the entropy value, memory tier, NTP synchronization, and the disable_apichv line rather than assuming the settings had survived:

esxcli system settings kernel list -o entropySources
esxcli memtier status get
esxcli system ntp get
grep -n "monitor_control.disable_apichv" /etc/vmware/config

Close  ×

These settings were specific accommodations for my AMD-based nested lab. They should be evaluated against the current product guidance for the exact hardware and ESXi build being used.

Running PowerCLI Natively on the Mac Mini

#

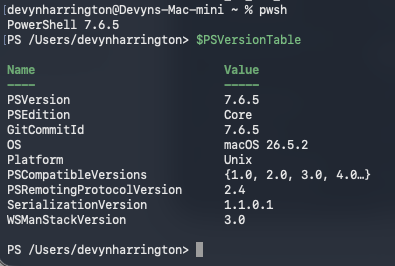

I used the Mac mini as the deployment workstation and ran PowerShell 7 and VMware PowerCLI natively on macOS. This kept the automation workflow on the system I was already using to manage the lab, without adding another VM to the environment.

The first Homebrew command I tried used the former cask and no longer worked. The current formula installed PowerShell successfully:

brew install powershell
pwsh

Close  ×

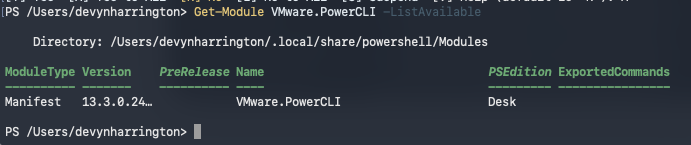

Inside PowerShell I installed PowerCLI for my user, validated the module, and set the certificate behavior for the self-signed homelab endpoints:

Install-Module VMware.PowerCLI -Scope CurrentUser
Get-Module VMware.PowerCLI -ListAvailable
Set-PowerCLIConfiguration -InvalidCertificateAction Ignore -Confirm:$false

Close  ×

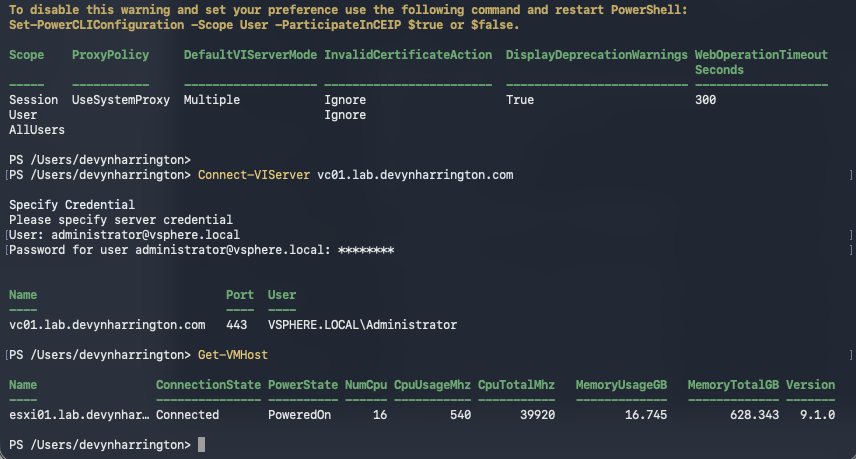

I then proved the Mac could connect to the outer vCenter and query the physical ESXi host:

Connect-VIServer vc01.lab.devynharrington.com
Get-VMHost

Close  ×

Starting with William Lam’s Automation

#

The automation was not something I wrote from scratch. I started with William Lam’s VCF 9.1 automated nested-lab article and his VCF Fleet Automated Lab Deployment repository. His work handled the repetitive deployment of the VCF Installer and nested ESXi appliances, hardware reconfiguration, and management-domain JSON generation.

I kept William’s base scripts as references and created an environment-specific configuration containing my vCenter target, datastore, OVA paths, DNS and networking, six nested-host definitions, hardware sizing, and VCF service addresses. His automation can use an online depot token when one is available:

$VCFInstallerSoftwareDepot = "online"
$VCFInstallerDepotToken = "<BROADCOM_DOWNLOAD_TOKEN>"

I did not have a token, so my working copy used these controls:

$configureVCFInstallerConfig = 0
$startVCFBringup = 0

The first setting deferred Software Depot configuration, and the second prevented the script from submitting the generated JSON for bring-up. I completed the Business Services Console activation-code workflow manually later. Download tokens and activation codes should not be committed to a public configuration file.

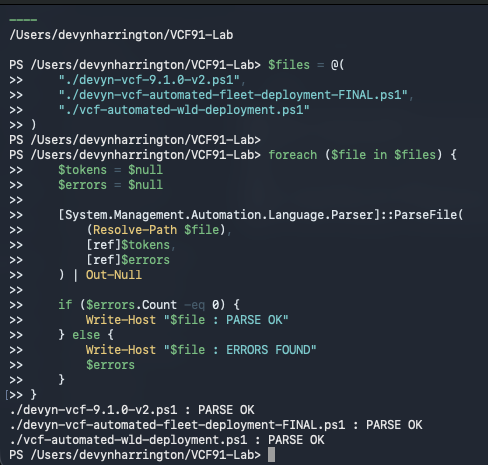

I also enabled staging for the three future workload hosts. Before running the automation, I used the PowerShell parser to check all three files for syntax errors without executing them:

$files = @(
  "./devyn-vcf-9.1.0-v2.ps1",
  "./devyn-vcf-automated-fleet-deployment-FINAL.ps1",
  "./vcf-automated-wld-deployment.ps1"
)

foreach ($file in $files) {
  $tokens = $null
  $errors = $null
  [System.Management.Automation.Language.Parser]::ParseFile(
    (Resolve-Path $file), [ref]$tokens, [ref]$errors
  ) | Out-Null

  if ($errors.Count -eq 0) {
    Write-Host "$file : PARSE OK"
  } else {
    Write-Host "$file : ERRORS FOUND"
    $errors
  }
}

Close  ×

Preparing the Initial DNS Records

#

VCF made DNS correctness impossible to ignore, which is a good thing. Before running the automation, I created an initial batch of 13 core records on the MikroTik for the Installer, nested ESXi hosts, SDDC Manager, vCenter, NSX VIP, Operations endpoint, and planned workload-domain systems. I checked representative forward and reverse lookups, but that initial batch was not the complete VCF 9.1 service namespace. The first JSON validation later revealed the additional names I had missed.

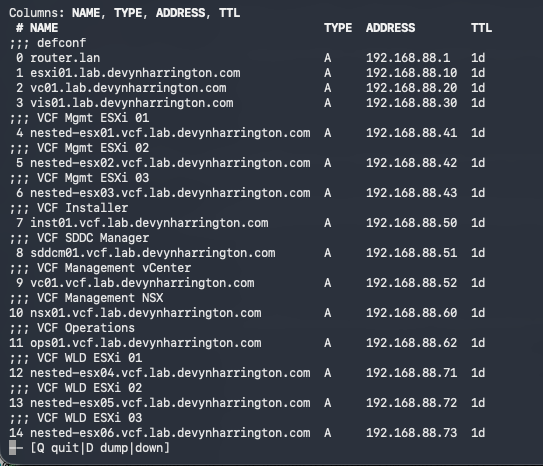

I added those initial static records in one MikroTik terminal session, then ran representative queries from the Mac:

nslookup inst01.vcf.lab.devynharrington.com 192.168.88.1
nslookup nested-esx01.vcf.lab.devynharrington.com 192.168.88.1
nslookup sddcm01.vcf.lab.devynharrington.com 192.168.88.1

Close  ×

Deploying the Nested Infrastructure

#

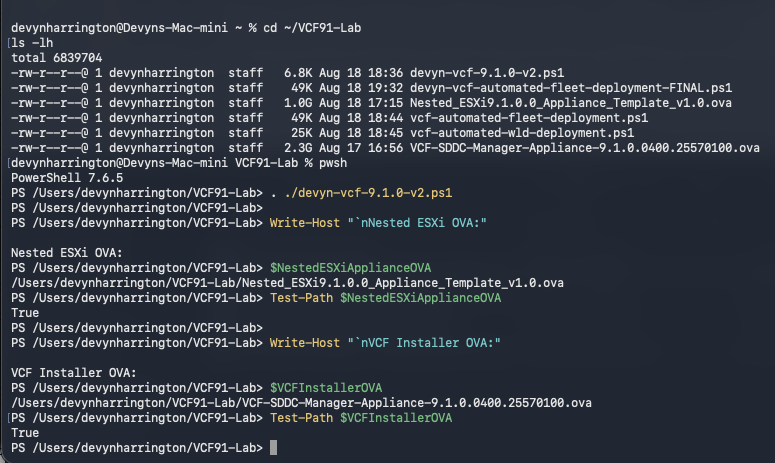

I validated the OVA paths and the destination resources before starting the main script:

Close  ×

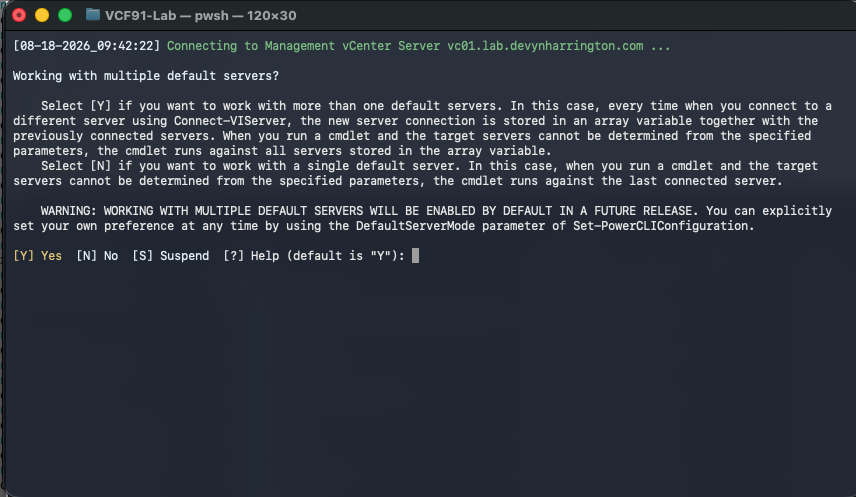

The Fleet deployment script connected to the outer vCenter and presented PowerCLI’s multiple-default-server prompt. I selected No, keeping PowerCLI in single-default-server mode for that session so commands without an explicit server target would use the most recently connected server.

Close  ×

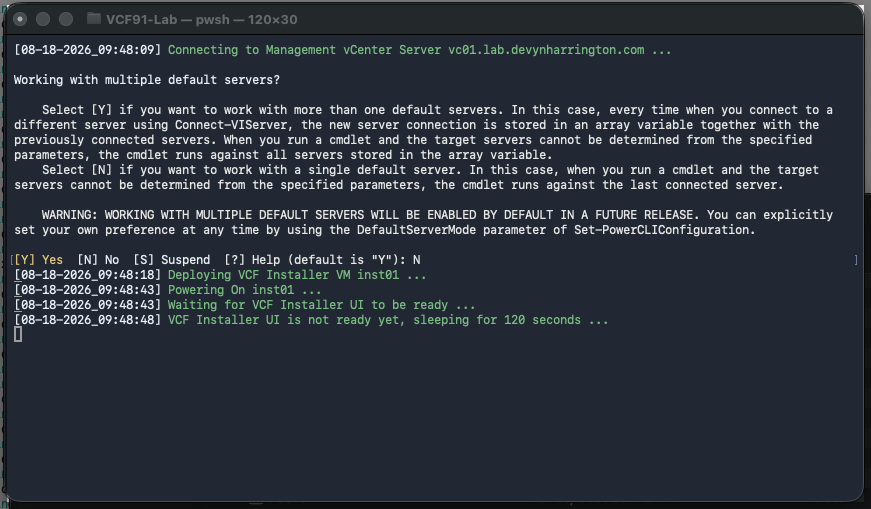

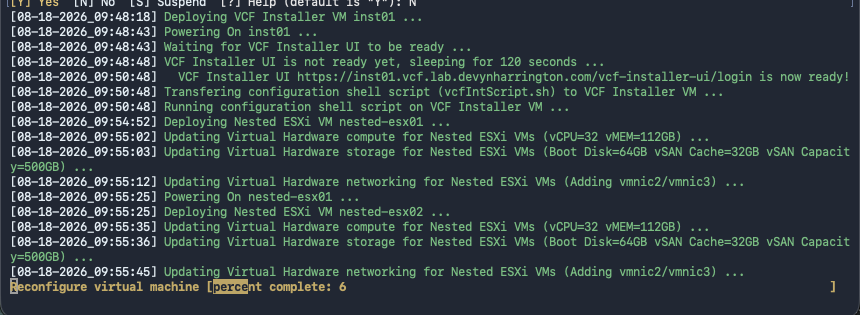

After I selected No, the automation began deploying inst01 and the nested ESXi hosts using my configuration.

Close  ×

Close  ×

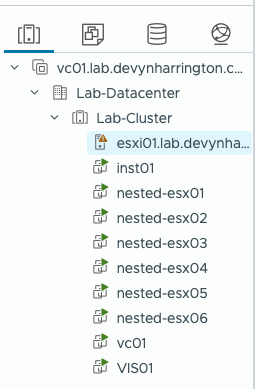

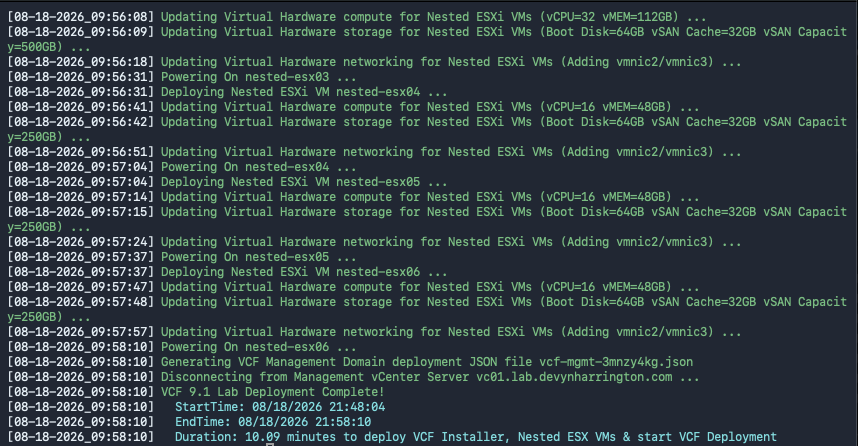

The final PowerShell summary confirmed that all six nested hosts had been processed and that vcf-mgmt-3mnzy4kg.json had been generated in the working directory. The run completed in about 10 minutes. The script’s generic duration message mentions starting the VCF deployment, but automatic bring-up was disabled in my configuration, so no management-domain request was submitted at this point.

Close  ×

Close  ×

The Script Generates the JSON Used by the Installer

#

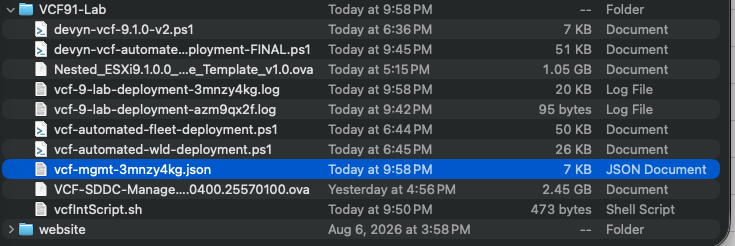

An important output of the script was easy to miss among the deployed VMs and log files. After building the nested hosts, it generated a management-domain specification in the same working directory. In my run that file was named vcf-mgmt-3mnzy4kg.json; the generated suffix can differ between runs.

Close  ×

That JSON is the handoff between the two phases:

PowerCLI automation
  -> deploys the VCF Installer and nested ESXi VMs
  -> configures the nested VM hardware
  -> generates vcf-mgmt-<generated-suffix>.json

VCF Installer
  -> imports the generated JSON
  -> validates and corrects the specification
  -> performs the VCF management-domain deployment

I uploaded the generated JSON without fully comparing its DNS records with its address pools. Installer validation caught several issues, but an Automation addressing conflict survived and surfaced later in the deployment.

Staging VCF 9.1 in the Installer

#

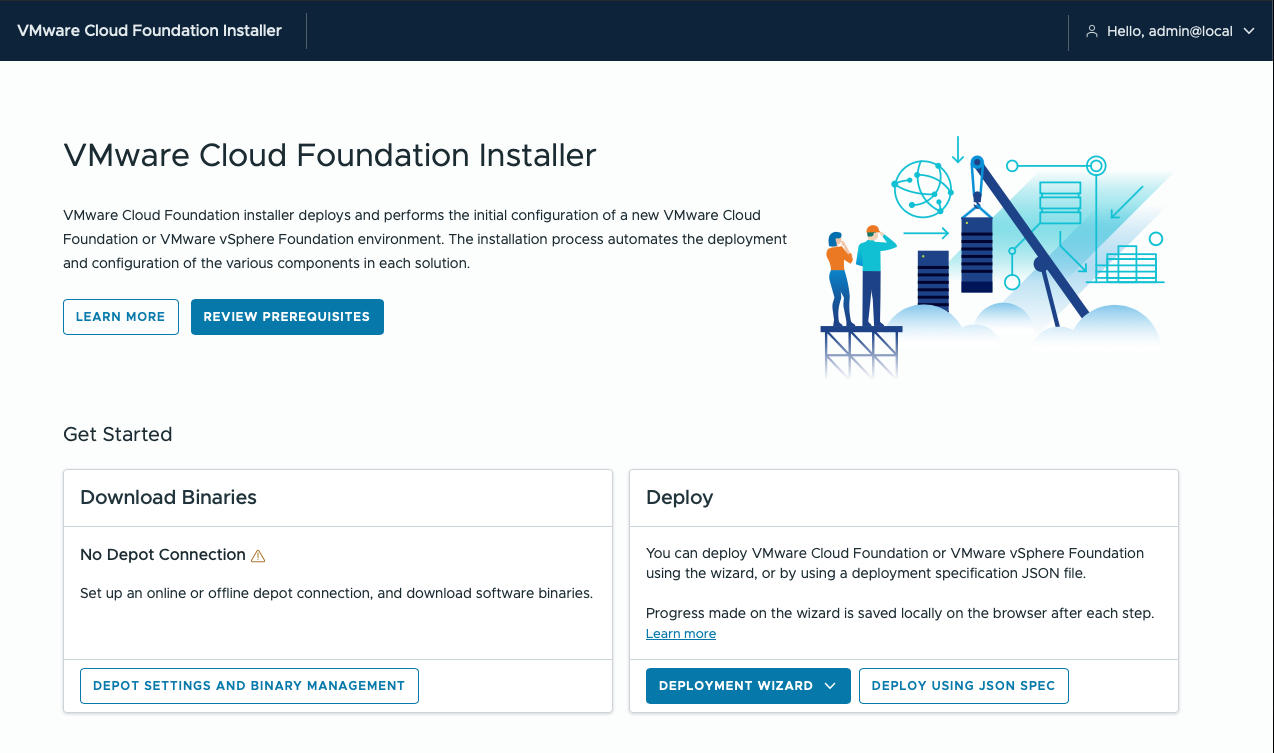

The VCF Installer web interface came online at inst01. I logged in, opened depot and binary management, and used the VCF 9.1 Software Depot registration flow. The Installer supplied a Download Service ID, which I registered in Broadcom’s console to obtain an activation code.

Close  ×

Registering the Software Depot in the Business Services Console

#

The VCF Installer did not generate the activation code itself. It displayed a unique Download Service ID in the Online Depot dialog and directed me to the Broadcom Business Services Console. From there I used this sequence:

1. In the VCF Installer, open Depot Settings and Binary Management and choose the online depot.
2. Copy the Download Service ID shown by the Installer.

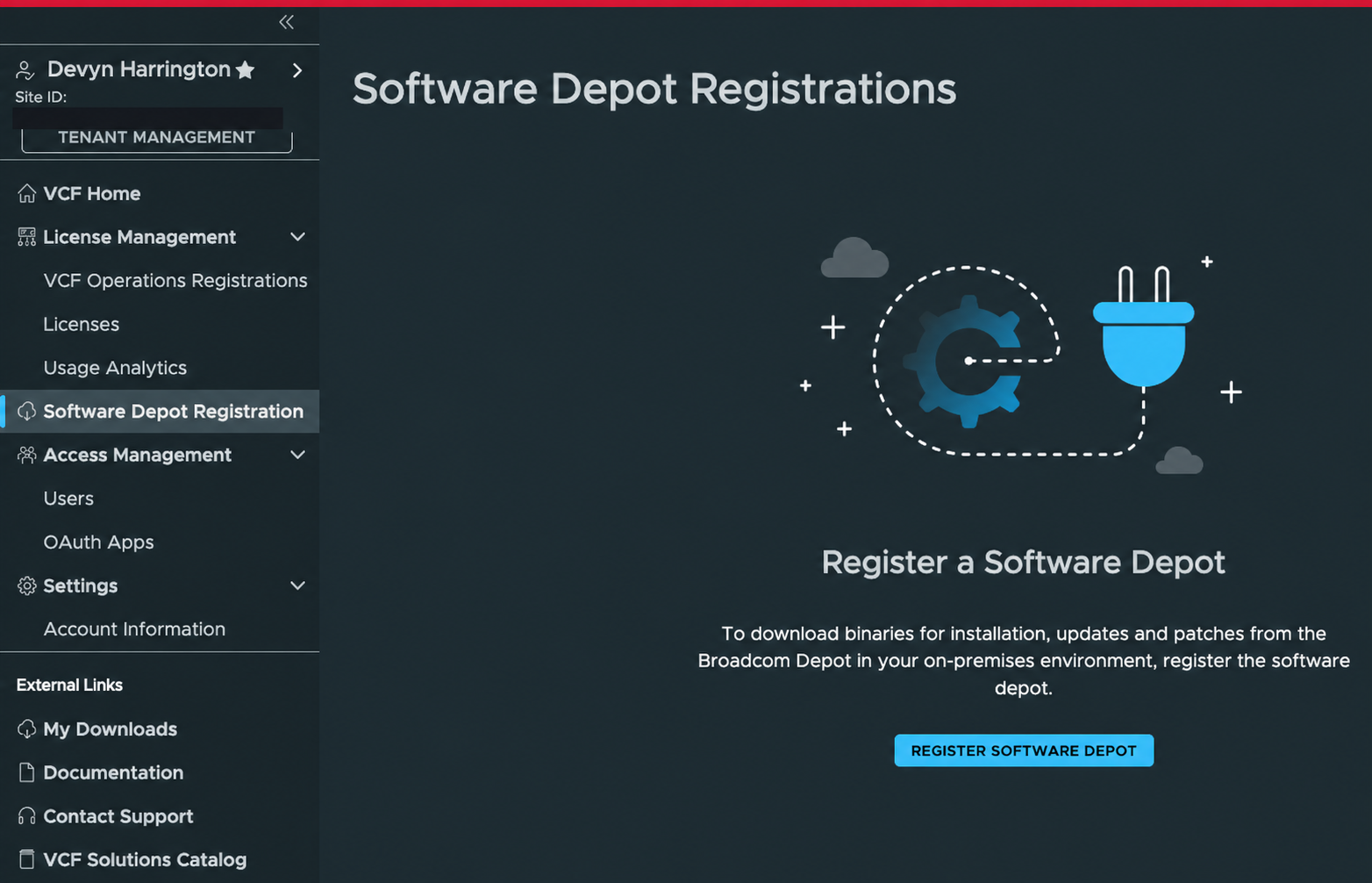

3. In the Broadcom Business Services Console, open Software Depot Registration.
4. Select Register Software Depot.

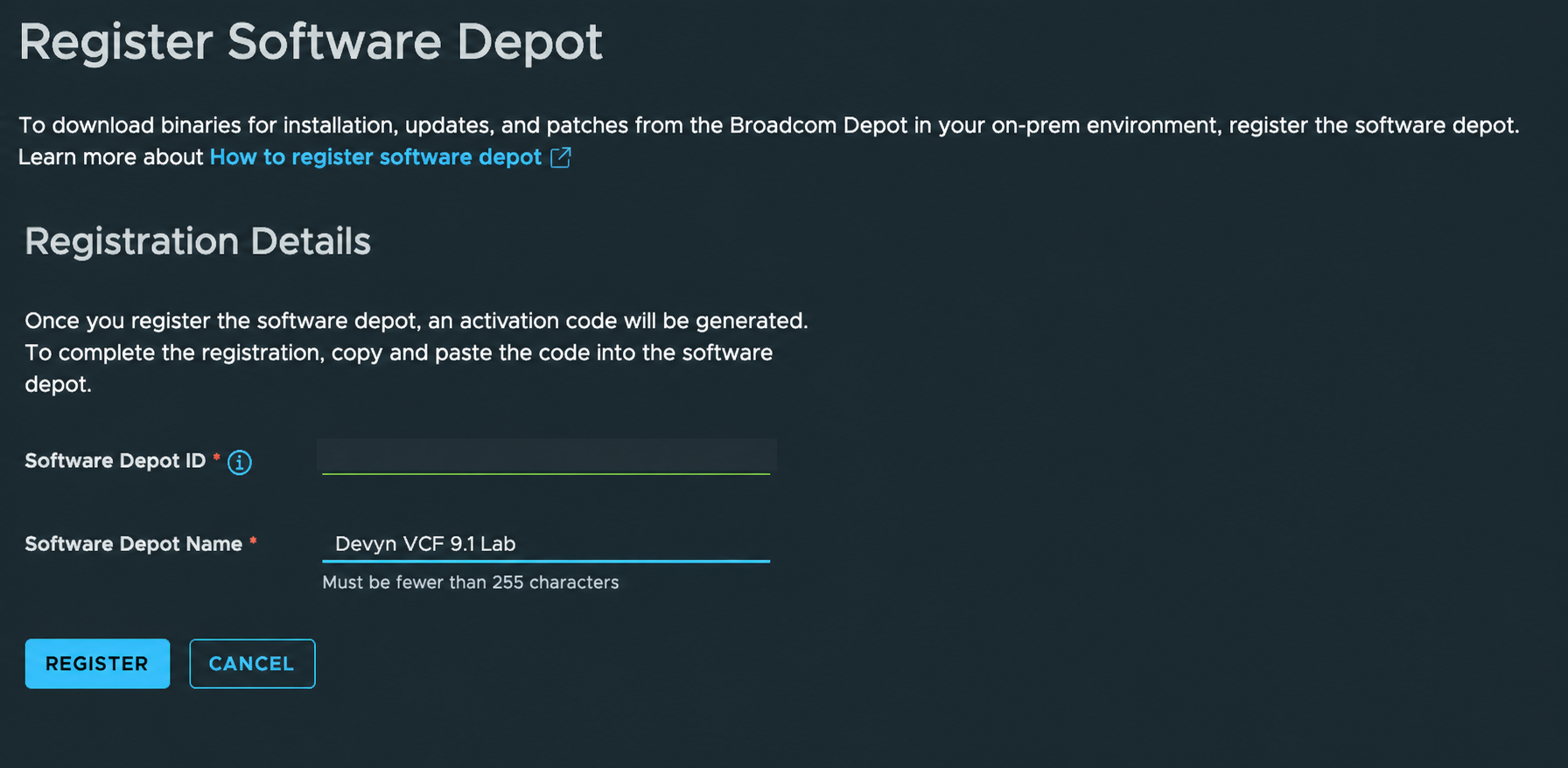

5. Paste the Installer’s Download Service ID, give the registration a recognizable name, and select Register.
6. Copy the one-time activation code returned by the console.

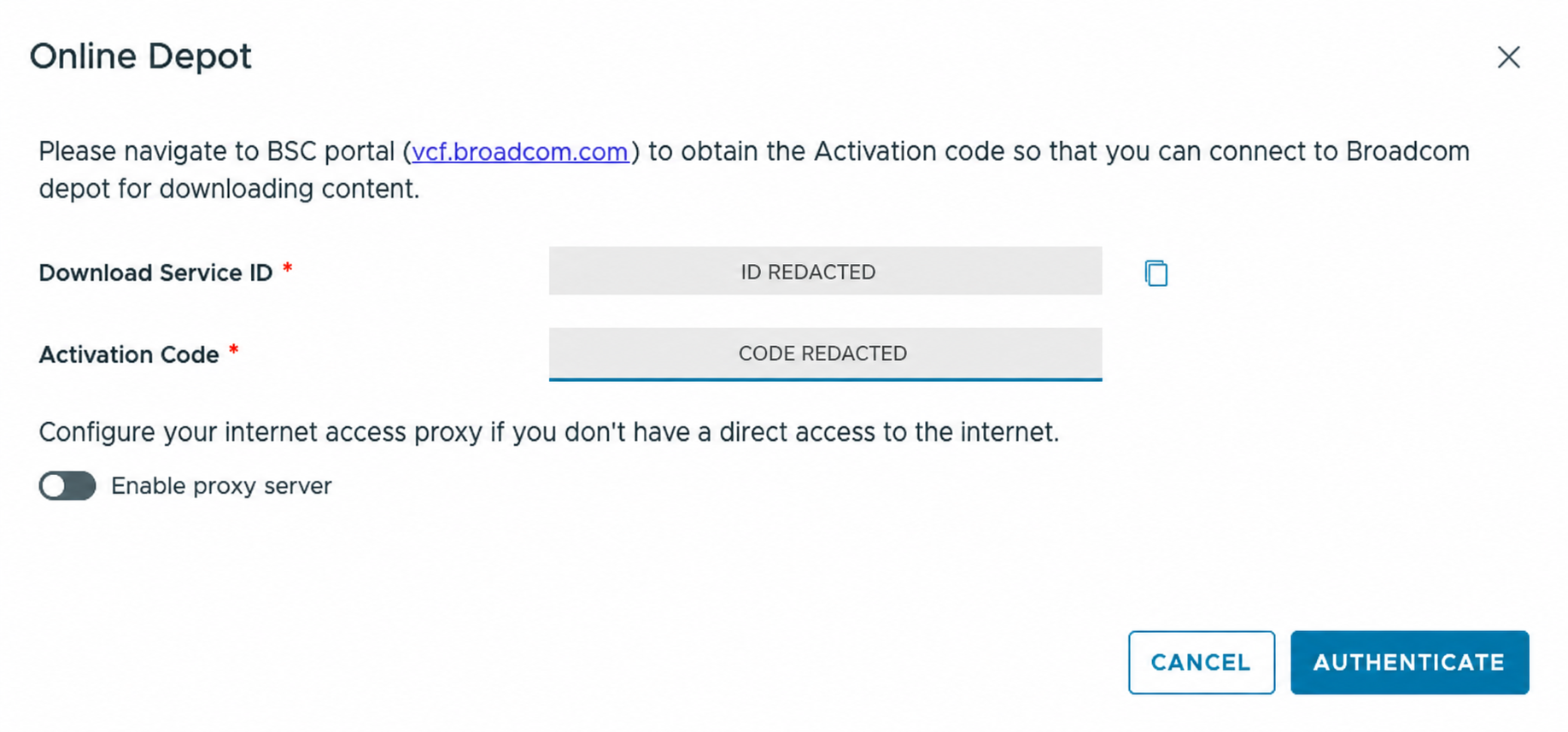

7. Return to the Installer, paste that value into Activation Code, and select Authenticate.

Close  ×

Close  ×

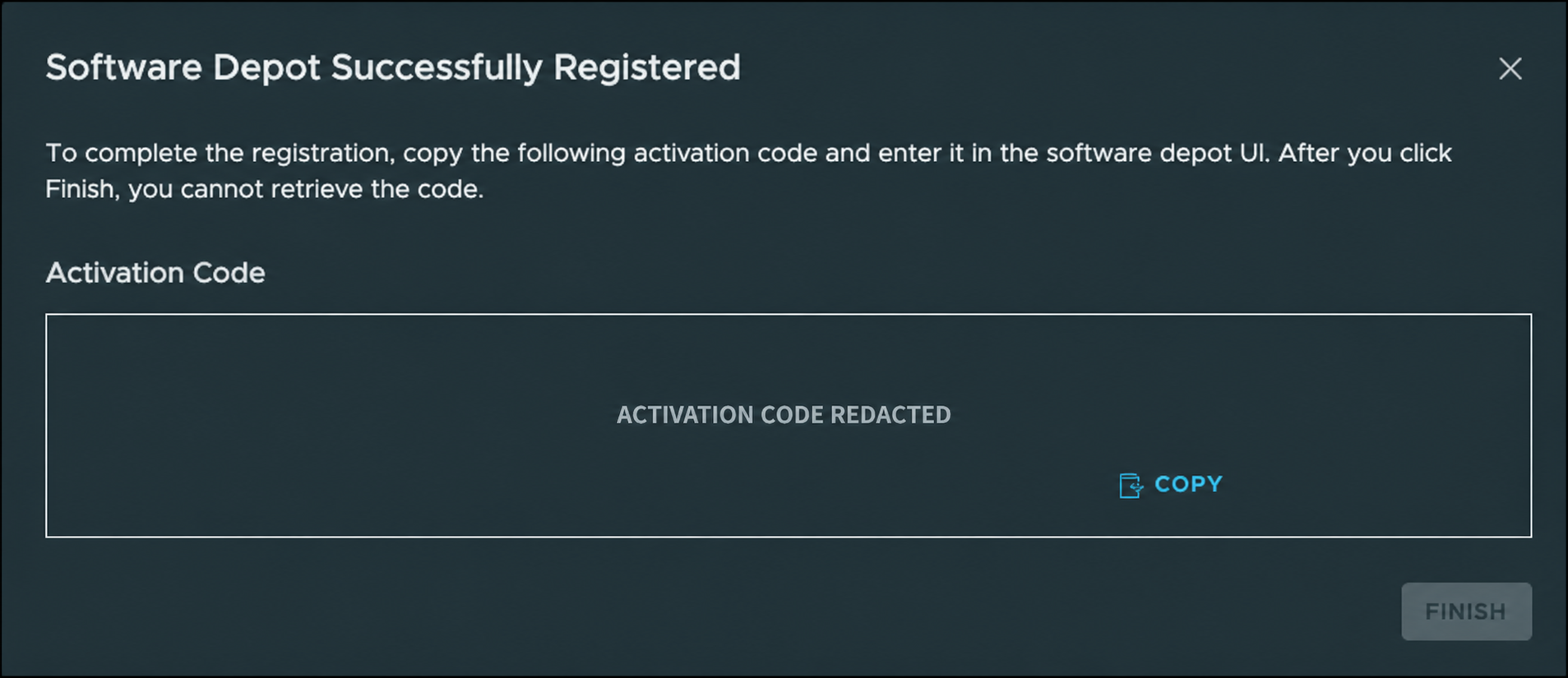

The Business Services Console warned that the activation code could not be retrieved again after finishing the dialog. I copied it directly into the Installer and authenticated the depot before closing that screen.

Close  ×

Close  ×

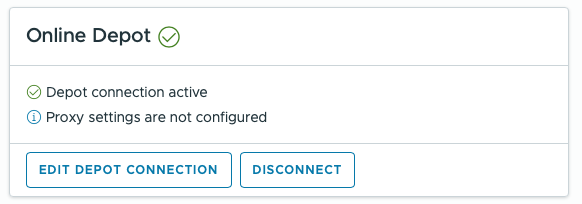

These redacted screenshots preserve the complete registration handoff without publishing either reusable value.

I uploaded the generated JSON before downloading the binaries. That did not start deployment; it let the Installer expose missing DNS records and ESXi thumbprints while I was still preparing the environment. Deployment began only after validation and the final deployment action.

The First JSON Upload Exposed the Missing DNS Records

#

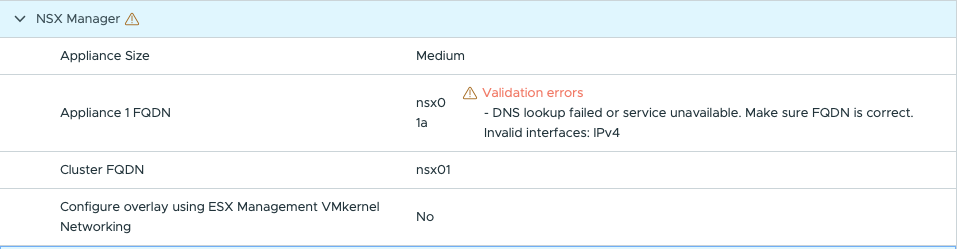

The first validation run confirmed that the three management hosts were missing SSL thumbprints. It also showed that my original DNS batch was incomplete.

Close  ×

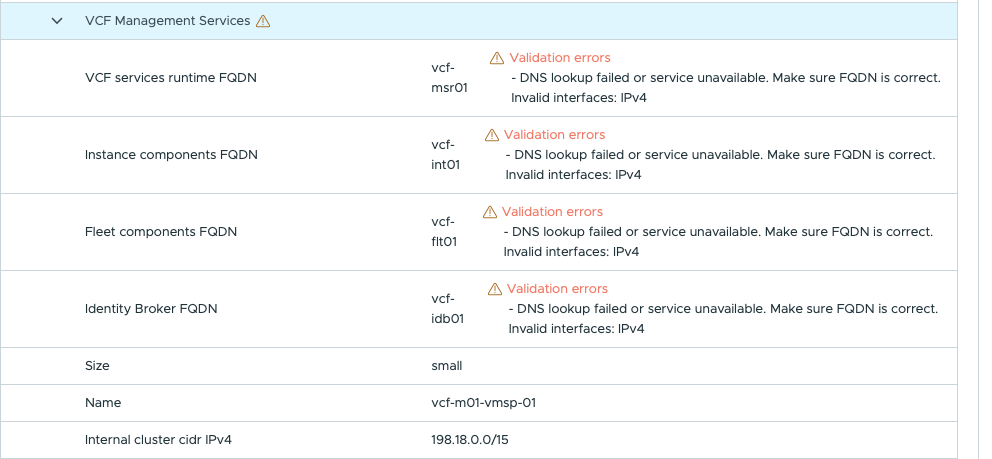

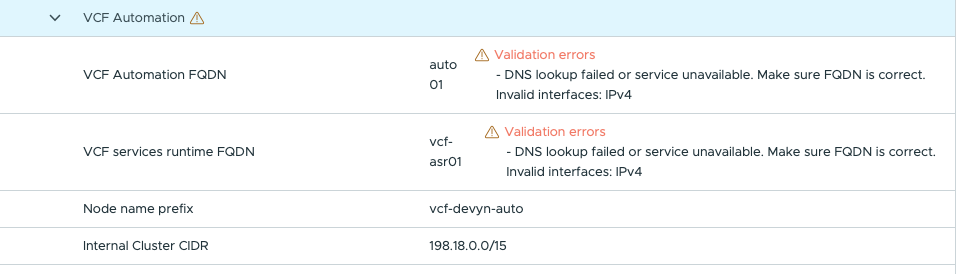

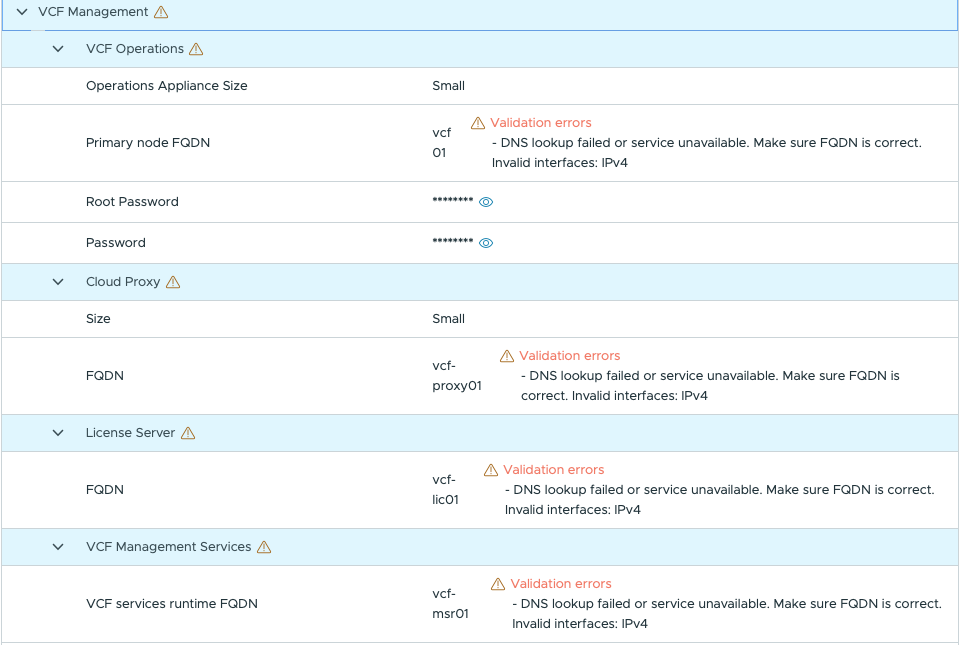

The DNS errors arrived across several validation result screens. Together they identified ten names that were absent from the initial MikroTik records: vcf01, vcf-proxy01, vcf-lic01, vcf-msr01, vcf-int01, vcf-flt01, vcf-idb01, auto01, vcf-asr01, and nsx01a.

Close  ×

Close  ×

Close  ×

Close  ×

Rather than add the records one dialog at a time, I opened a MikroTik terminal and pasted the missing entries as one RouterOS batch. These are the addresses I used at this preflight stage:

/ip dns static
add name=nsx01a.vcf.lab.devynharrington.com address=192.168.88.61
add name=vcf01.vcf.lab.devynharrington.com address=192.168.88.62
add name=vcf-msr01.vcf.lab.devynharrington.com address=192.168.88.63
add name=vcf-flt01.vcf.lab.devynharrington.com address=192.168.88.64
add name=vcf-int01.vcf.lab.devynharrington.com address=192.168.88.65
add name=vcf-lic01.vcf.lab.devynharrington.com address=192.168.88.66
add name=vcf-idb01.vcf.lab.devynharrington.com address=192.168.88.67
add name=vcf-proxy01.vcf.lab.devynharrington.com address=192.168.88.68
add name=vcf-asr01.vcf.lab.devynharrington.com address=192.168.88.69
add name=auto01.vcf.lab.devynharrington.com address=192.168.88.70

Those were early preflight values, not the final known-good addressing summarized after validation below.

I then verified the entire added batch from the Mac mini. A loop makes the same check easier to repeat than issuing ten separate commands:

for host in \
  nsx01a vcf01 vcf-msr01 vcf-flt01 vcf-int01 \
  vcf-lic01 vcf-idb01 vcf-proxy01 vcf-asr01 auto01
do
  nslookup "${host}.vcf.lab.devynharrington.com" 192.168.88.1
done

After I re-uploaded the JSON, the missing-name findings cleared. The remaining host-certificate findings led directly to the next CLI check.

Collecting the ESXi Thumbprints from the Mac Mini

#

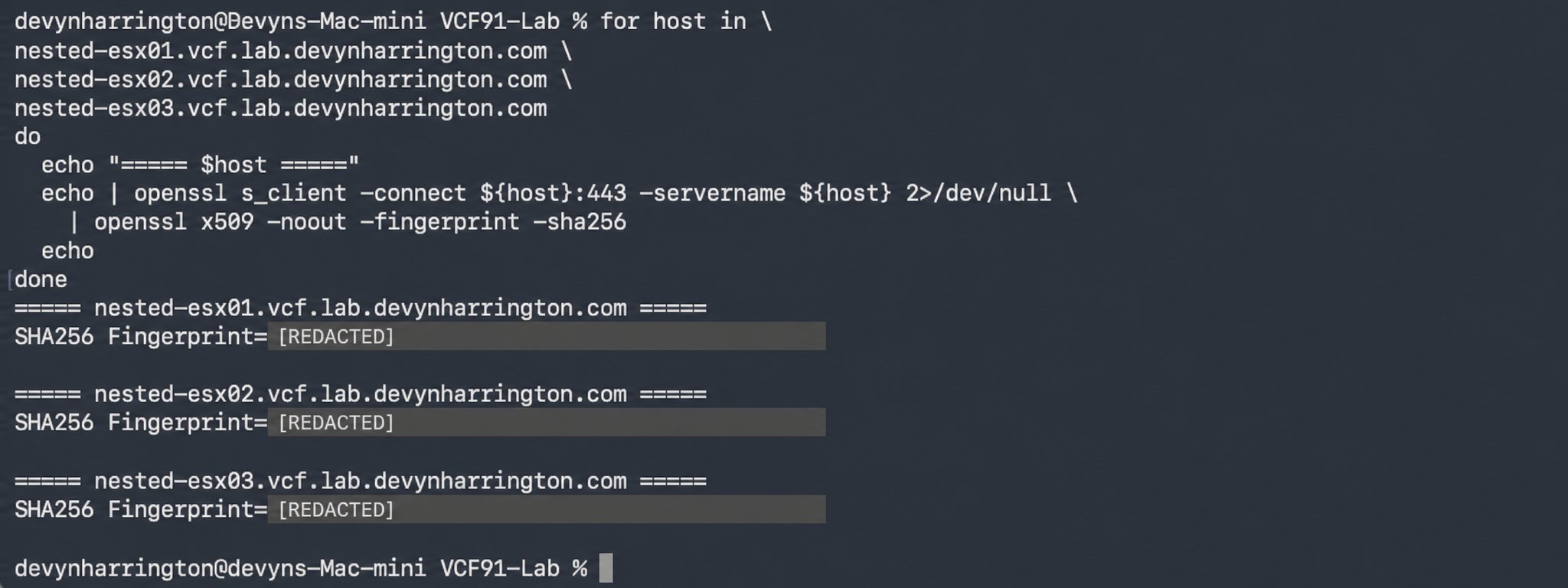

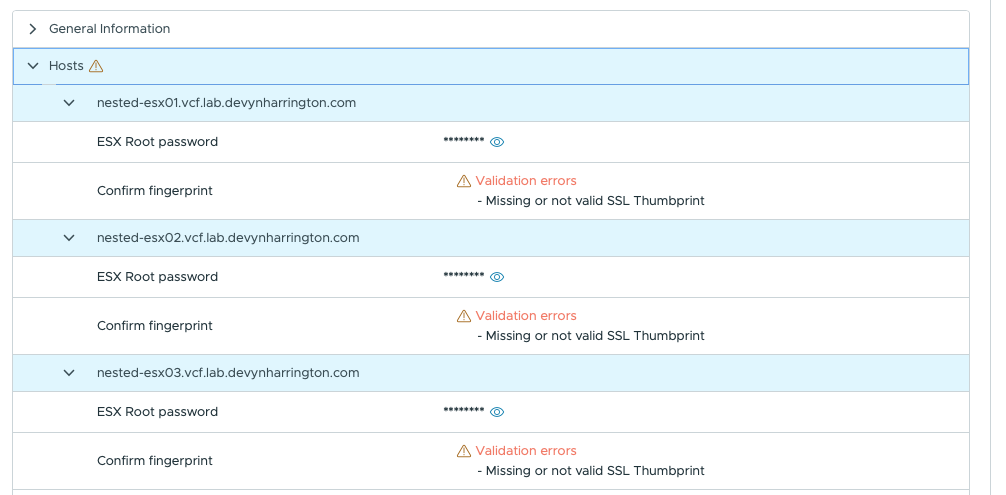

The generated specification contained skipEsxThumbprintValidation: true, but the Installer still reported missing SSL thumbprints for all three management hosts. Instead of opening each ESXi certificate through a browser, I collected all three SHA-256 fingerprints from Terminal on the Mac mini:

for host in \
  nested-esx01.vcf.lab.devynharrington.com \
  nested-esx02.vcf.lab.devynharrington.com \
  nested-esx03.vcf.lab.devynharrington.com
do
  echo "===== $host ====="
  echo | openssl s_client -connect "${host}:443" -servername "${host}" 2>/dev/null \
    | openssl x509 -noout -fingerprint -sha256
  echo
done

Close  ×

My terminal happened to be in the VCF91-Lab project directory, but OpenSSL did not depend on that folder. The command connects directly to each ESXi host over HTTPS and can be run from any directory. The project directory matters only when scripts or JSON files are referenced by relative path.

I added each returned value to the sslThumbprint property of the matching host object in the deployment JSON. After another upload, nested-esx02 and nested-esx03 were accepted immediately. I recaptured nested-esx01 by itself and corrected its entry, after which all three thumbprint findings disappeared.

Each entry belonged inside the matching object in the JSON’s hostSpecs array:

"hostSpecs": [
  {
    "hostname": "nested-esx01.vcf.lab.devynharrington.com",
    "credentials": {
      "username": "root",
      "password": "<ESXI_ROOT_PASSWORD>"
    },
    "sslThumbprint": "<SHA-256-THUMBPRINT>"
  }
]

I repeated that sslThumbprint field for nested-esx02 and nested-esx03 using the value retrieved from each host.

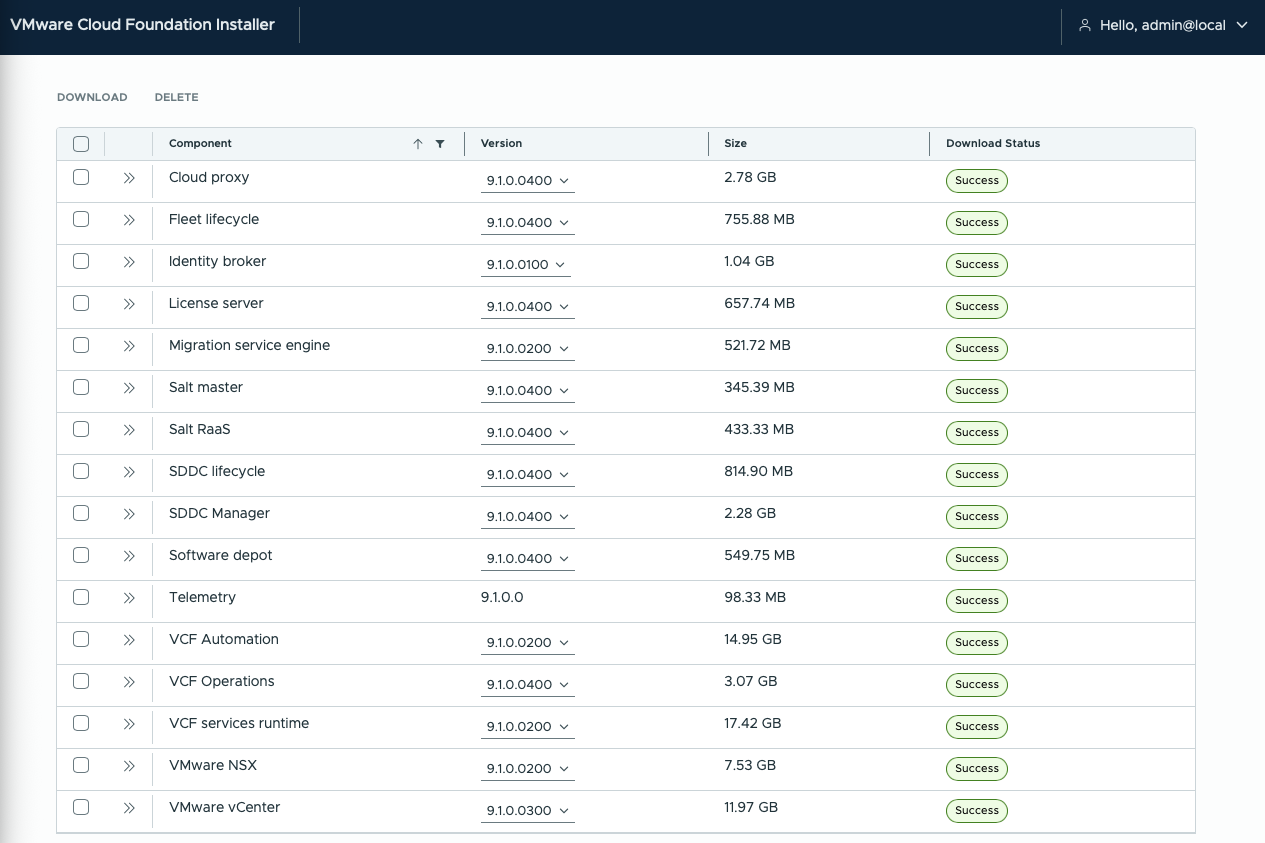

After that initial JSON check, I returned to the authenticated depot, selected the VCF 9.1 components required by the specification, including the larger VCF Operations, Management Services, and Automation payloads, and waited for every required download to complete.

Close  ×

The first download-progress screenshot was captured at 11:03:14 PM, and the completed view was captured at 11:30:44 PM. That put the approximately 65 GB download at roughly 28 minutes on my home connection. Download time will vary substantially with internet bandwidth, depot performance, proxy inspection, and whether the binaries must be transferred into a disconnected environment.

Close  ×

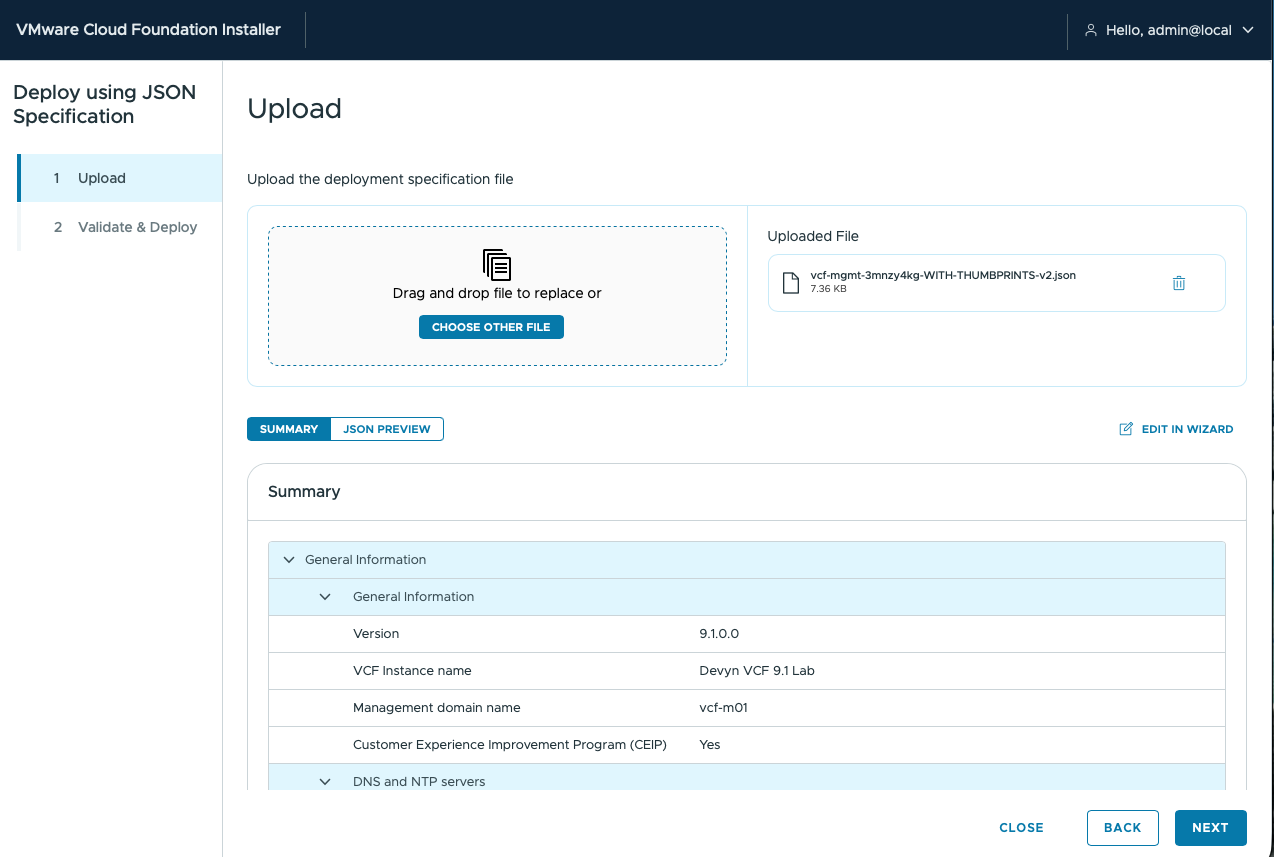

With the binaries staged, I returned to Deploy Using JSON Spec and re-uploaded the corrected specification. The earlier pre-download upload had already exposed the missing ESXi SSL thumbprints and DNS issues; the remaining validation included capacity and compatibility warnings relevant to a nested lab.

Close  ×

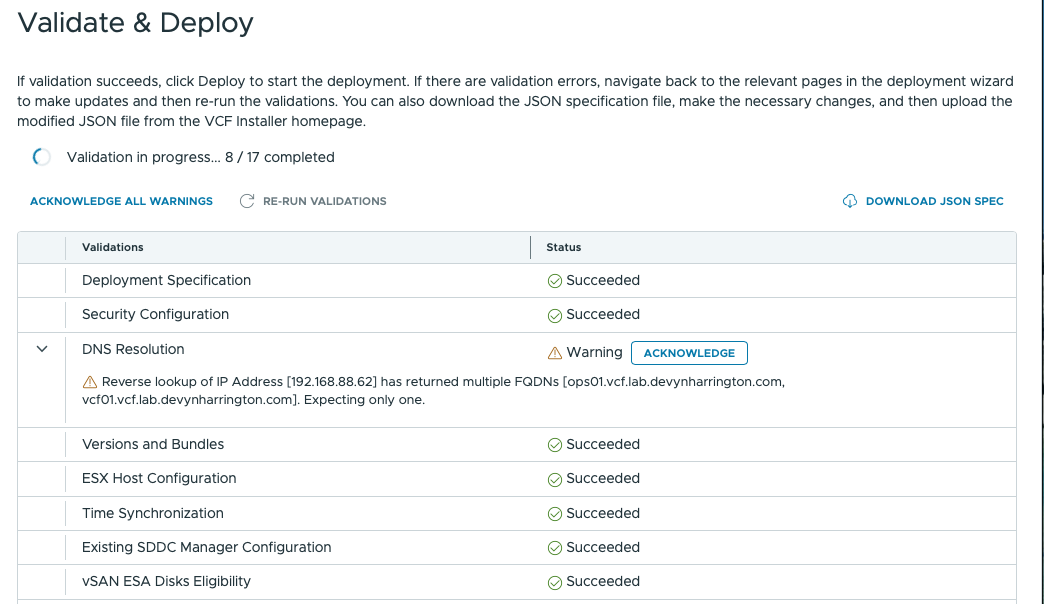

Formal validation then found two names resolving to 192.168.88.62: my planned VCF Operations name, ops01, and vcf01 from the generated JSON. I standardized the final JSON and DNS on ops01, removed the duplicate record, and reran validation.

Close  ×

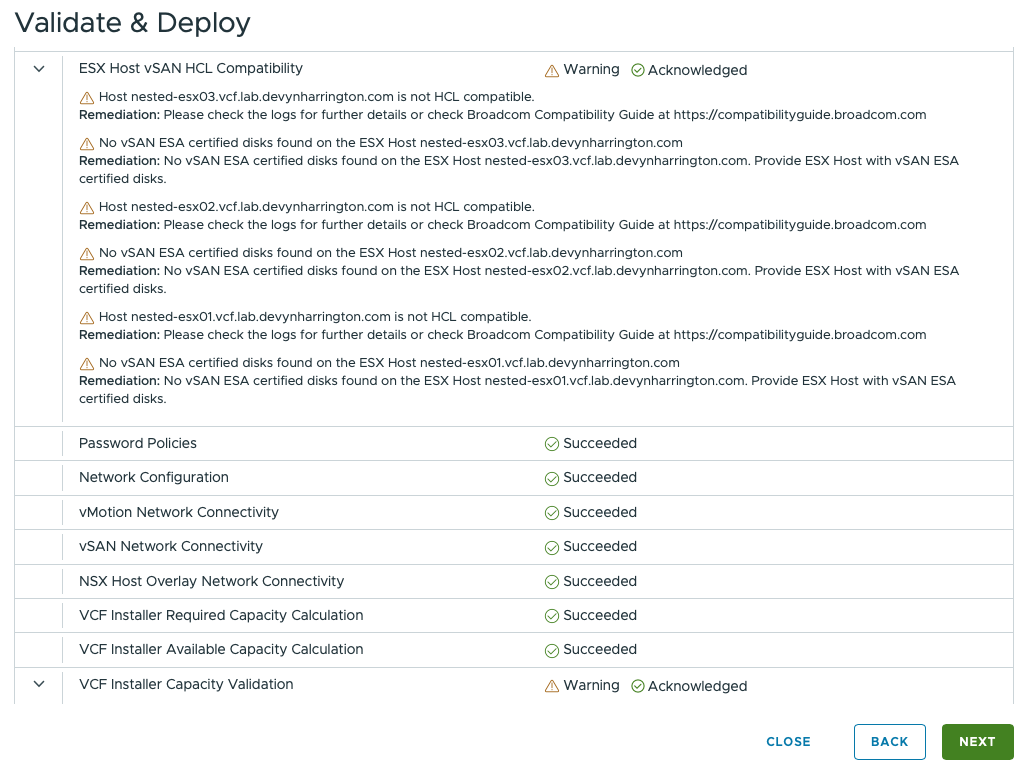

After correcting the missing DNS records, duplicate Operations mapping, and host thumbprints, I re-uploaded the JSON and reran validation. No errors remained. I reviewed and acknowledged the expected nested vSAN HCL and capacity warnings, which enabled Next.

Close  ×

The final validated specification used these endpoints:

The corrected deployment specification used for bring-up also defined the sddc1-cl01-vds01 distributed switch, 8940-byte vMotion and vSAN MTUs, and the 10.1.34.101-118 NSX TEP pool.

Watching the Management Domain Take Shape

#

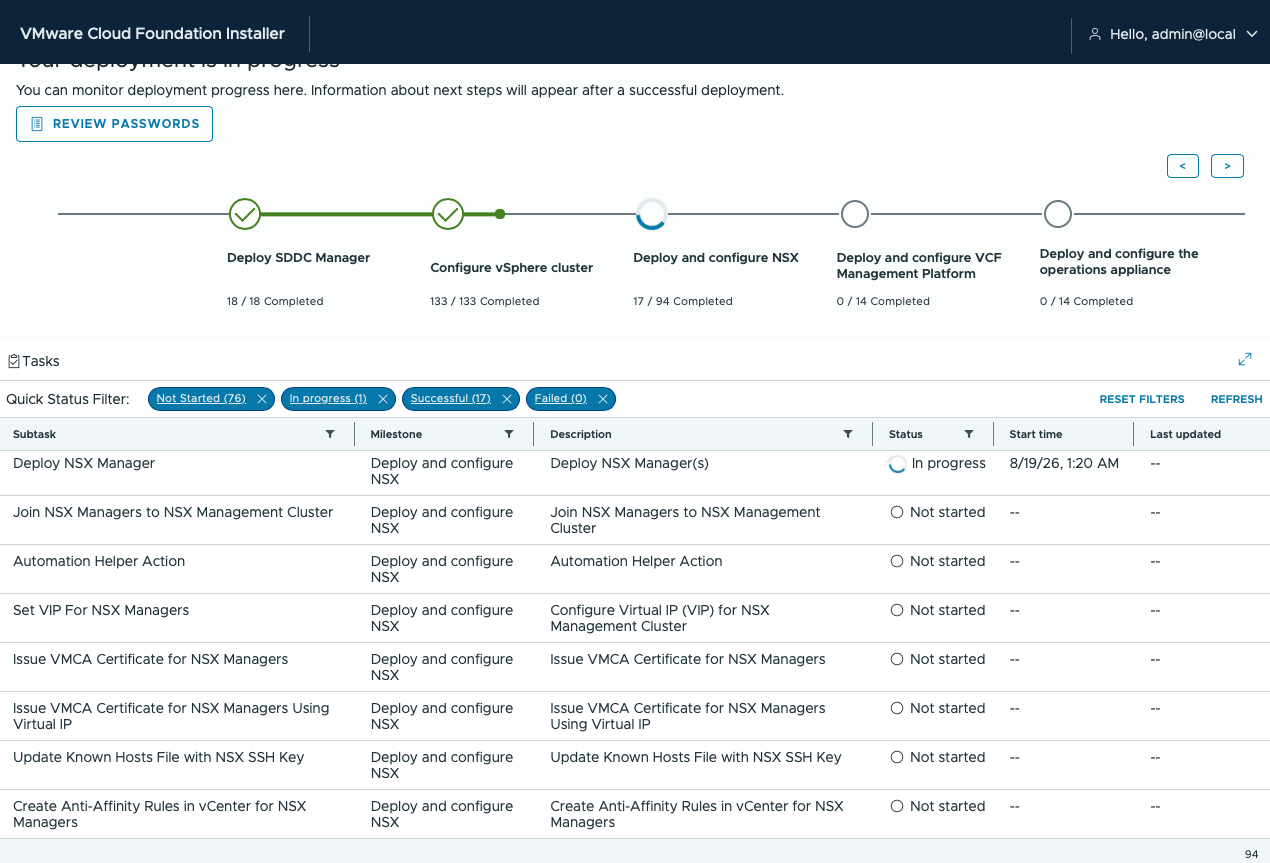

I started the deployment shortly after midnight, once the kids were asleep and the house was finally quiet. It was the perfect homelab maintenance window, although I paid for that decision the next morning. The Installer validated and commissioned the three hosts, deployed the management vCenter, created vcf-mgmt-dc and vcf-mgmt-cl01, configured vSAN, and moved into NSX.

Close  ×

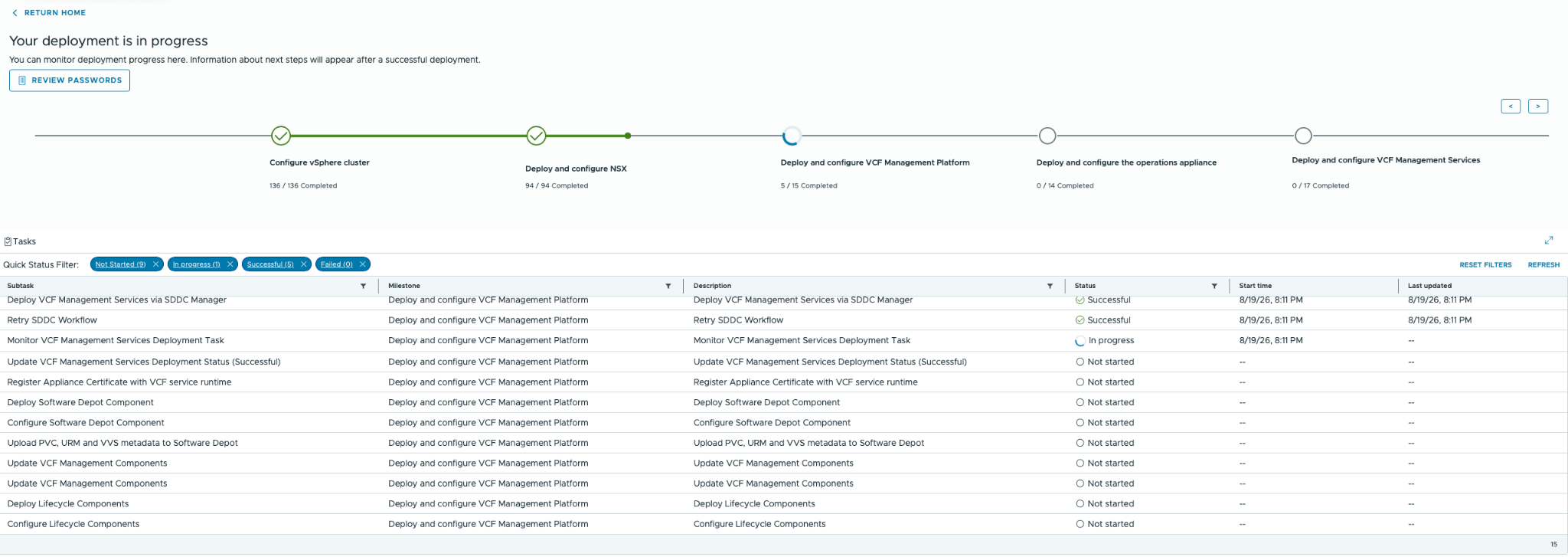

In this nested lab, progress did not always move quickly or look smooth. The percentage sometimes stayed at the same number for a long time even though work was still happening behind the scenes. That became especially important during NSX and Automation.

Fixing the Create Transport Node Collection Failure

#

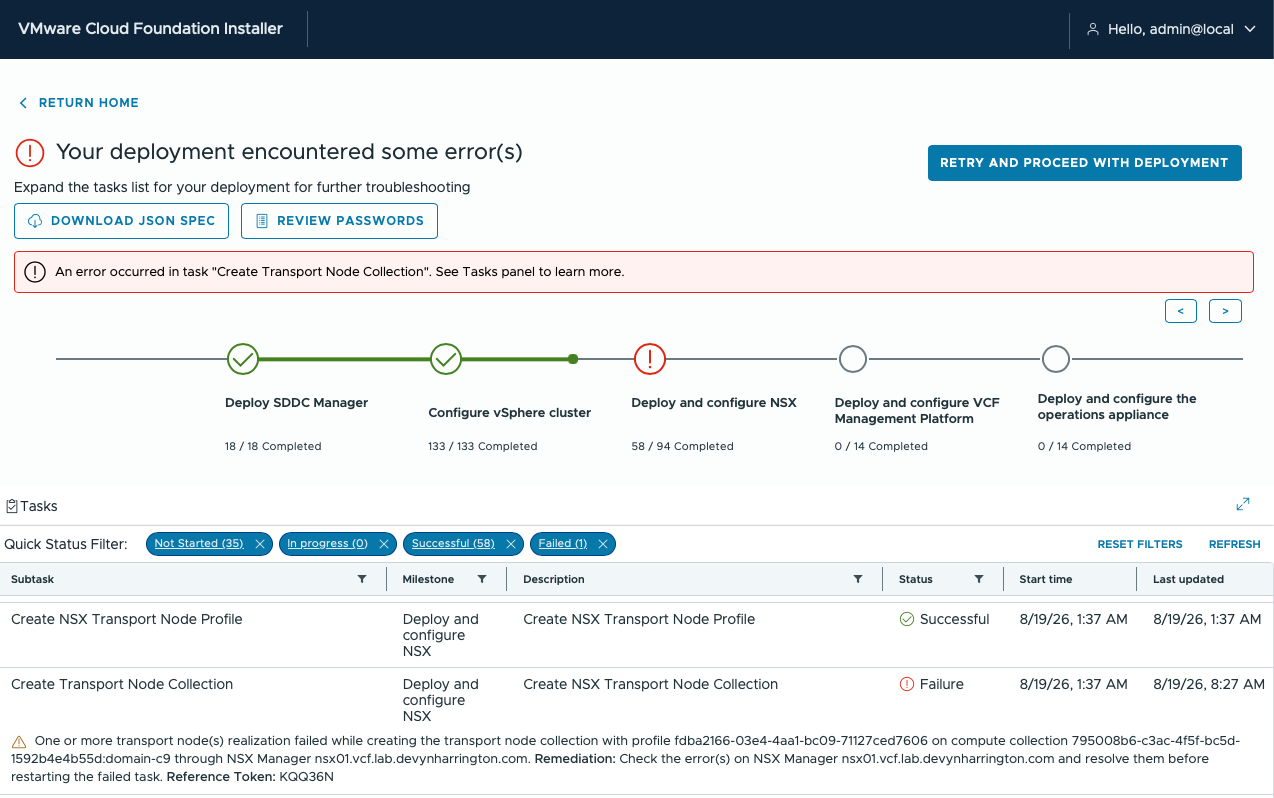

The first major failure occurred during Create Transport Node Collection. The Installer had made it through vCenter and most of the NSX work, but NSX had not configured one or more host transport nodes correctly.

Close  ×

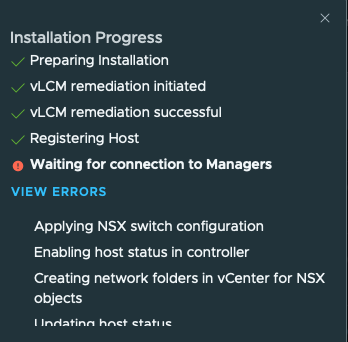

NSX’s host view showed nested-esx01 stalled at Waiting for connection to Managers, while nested-esx02 had NSX packages installed but no usable manager registration.

Close  ×

Diagnostics That Separated Reachability from Registration

#

On each affected ESXi host I checked the NSX CLI, proxy state, and installed components:

nsxcli
get managers
get controllers

esxcli software vib list | grep -i nsx
esxcli software component list | grep -i nsx

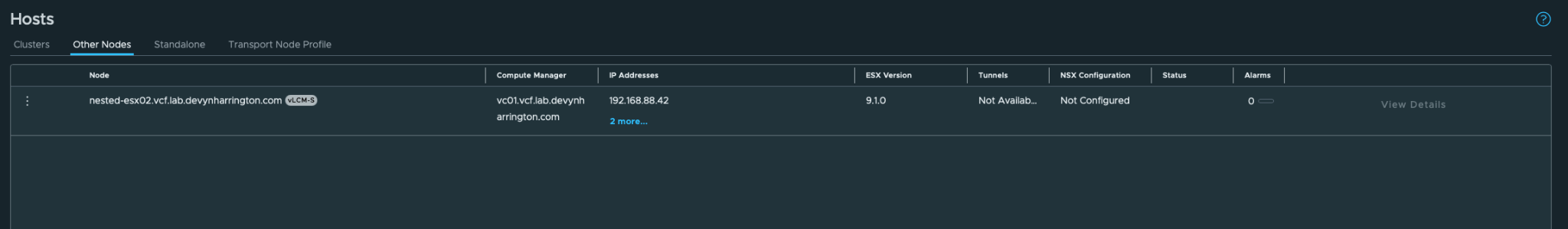

On nested-esx02, get managers returned No managers configured. Restarting nsx-proxy also complained that its transport-node UUID did not exist. That combination was more specific than a generic network problem: the NSX packages were installed, but this host did not have a usable transport-node registration.

Close  ×

I also tested DNS and the ports used by the manager connection:

nslookup nsx01a.vcf.lab.devynharrington.com
nc -z 192.168.88.61 443
nc -vz 192.168.88.61 1234
nc -vz 192.168.88.61 1235

Close  ×

The address distinction mattered during troubleshooting: 192.168.88.60 was the NSX VIP, while the actual NSX Manager node nsx01a used 192.168.88.61. NSX Manager services and cluster state were stable by the time I performed the host recovery.

Recovering One NSX Host at a Time

#

The successful recovery was controlled and host-specific. I did not tear down the cluster or clean all hosts simultaneously.

For each affected management host I used this sequence:

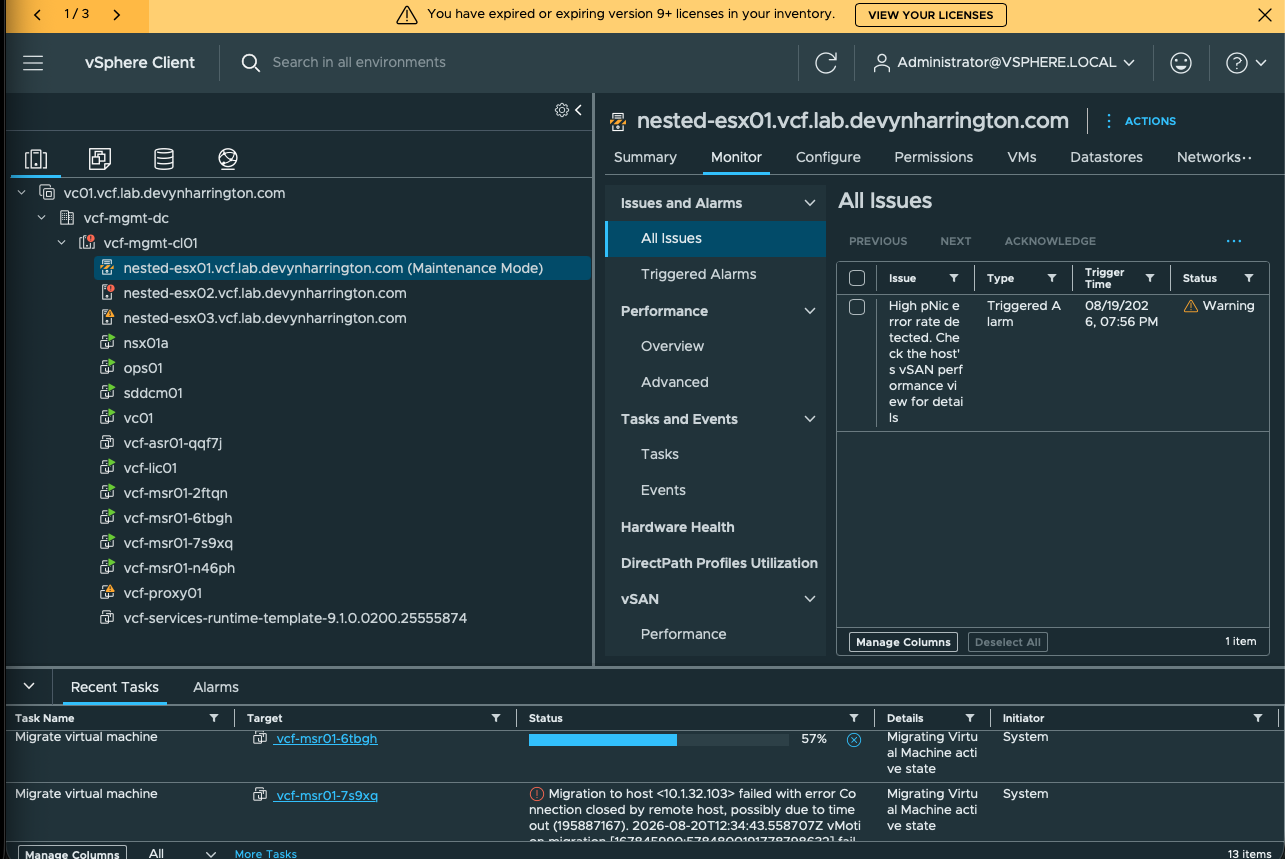

1. In the inner vCenter, place the host into maintenance mode. For this three-node nested vSAN lab I used the option that kept data accessible during the short maintenance window.
2. Wait for the powered-on VMs to migrate to the other hosts, then confirm the host is empty and fully in maintenance mode.
3. Leave the nested ESXi VM itself powered on so NSX can attempt a normal removal.
4. Only after evacuation is complete, move the host out of vcf-mgmt-cl01 and place it directly under vcf-mgmt-dc.
5. In NSX Manager, find it under System > Fabric > Hosts > Other Nodes.

Close  ×

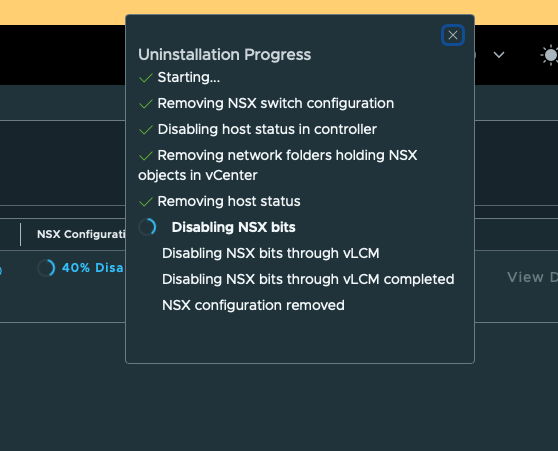

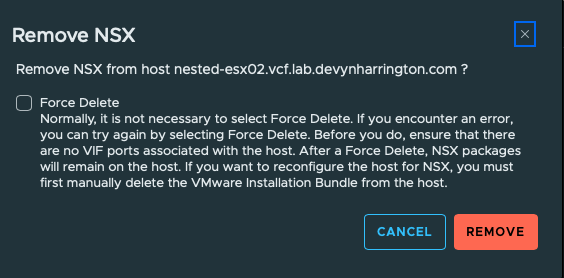

6. Attempt Remove NSX normally.
7. If the record is orphaned and normal removal cannot complete, use Force Delete only after confirming the state belongs to that host.

Close  ×

Close  ×

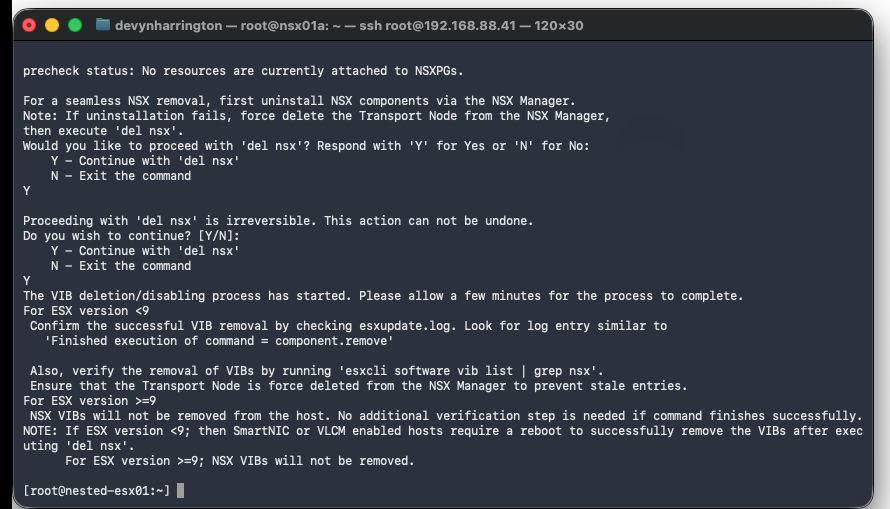

8. Where the UI still could not remove the stale local state, stop the proxy and run the local cleanup:

   /etc/init.d/nsx-proxy stop
   nsxcli -c del nsx

Close  ×

9. Reboot the nested ESXi VM while it is still outside the cluster and still in maintenance mode.
10. Verify the host returns without the stale manager registration.

Close  ×

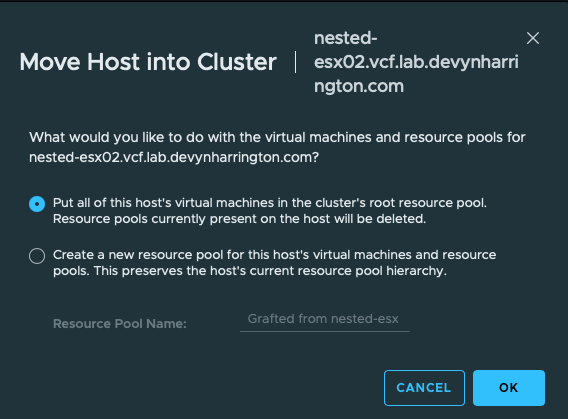

11. Move it back into vcf-mgmt-cl01.

Close  ×

12. In NSX Manager, return to System > Fabric > Hosts > Clusters. Open the three-dot menu for vcf-mgmt-cl01, select Configure NSX, and let the cluster Transport Node Profile prepare the returned host again.

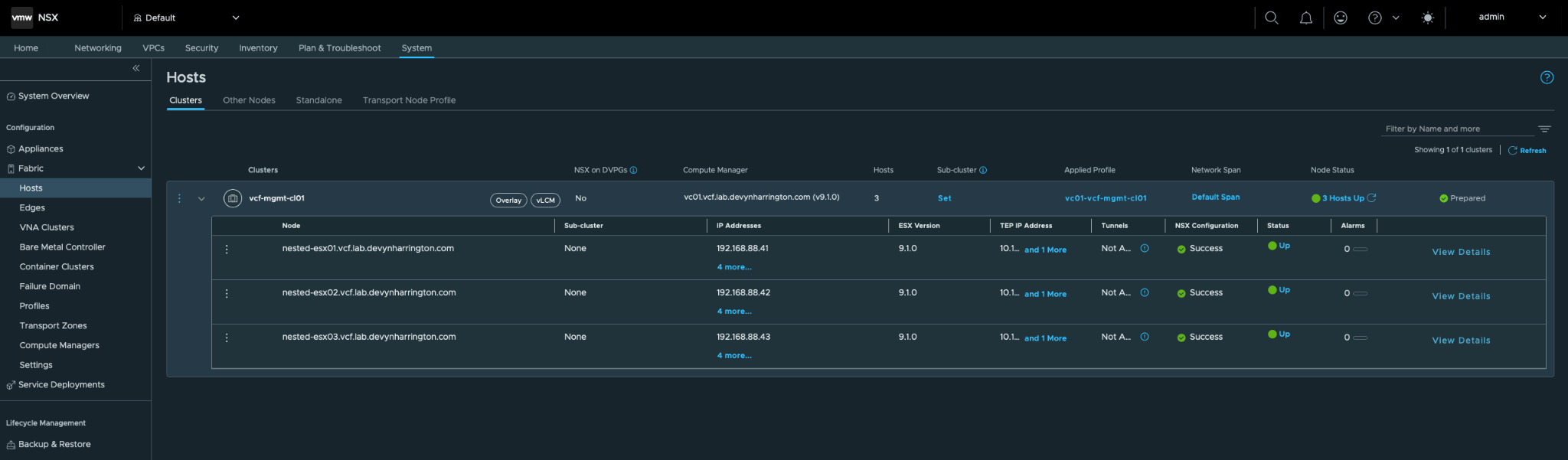

13. Wait for configuration to reach Success, the host to show Up, and manager/controller connectivity to return.

14. Exit maintenance mode only after those checks pass.

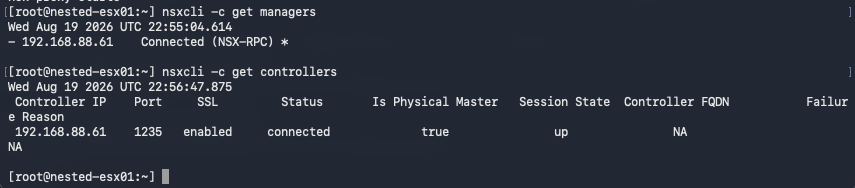

The final CLI checks showed the manager and controller connected to 192.168.88.61:

Close  ×

15. Move to the next affected host only after the first is healthy.

Moving the host out of the cluster was the key control-plane step. While it remained in the cluster, the Transport Node Profile controlled its NSX state and Remove NSX was disabled. The reboot cleared the old local agent identity so the host could register cleanly when it rejoined.

Clearing the Remaining Degraded NSX Proxy Agent

#

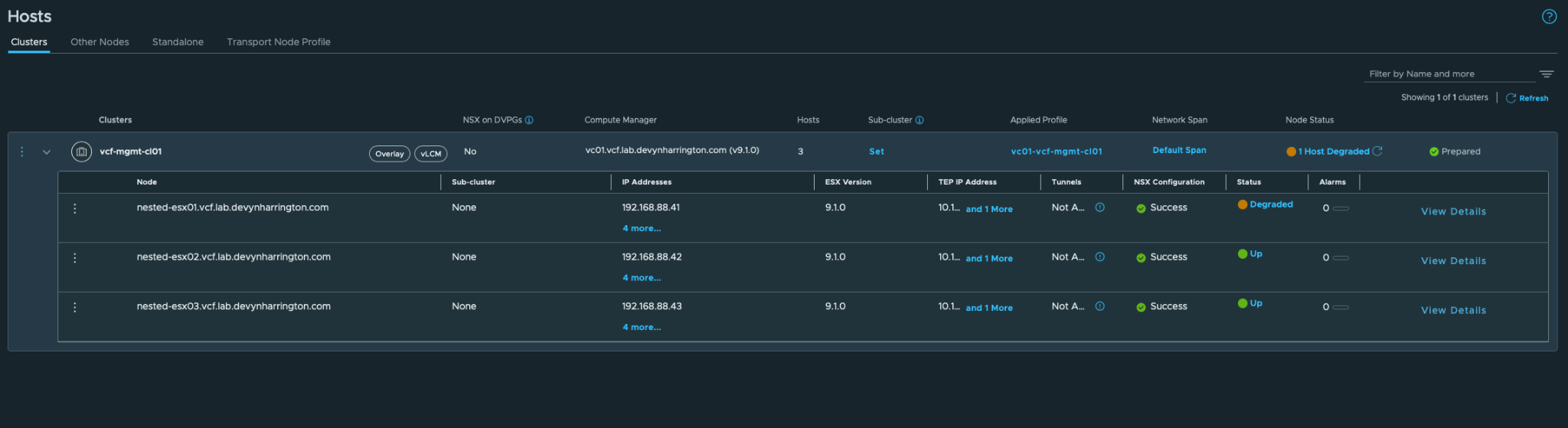

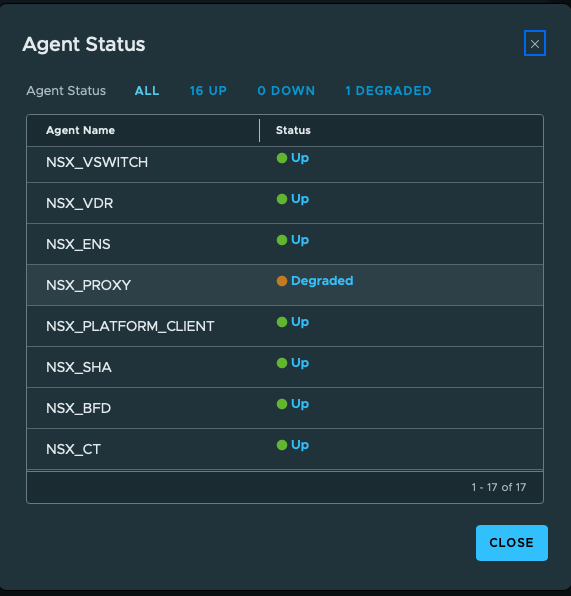

Getting the host back to NSX Configuration: Success did not immediately make every health indicator green. nested-esx01 had working TEP addresses and connected manager/controller sessions, but its Agent Status panel still showed 16 UP, 0 DOWN, and 1 DEGRADED. The remaining degraded agent was NSX_PROXY.

Close  ×

Close  ×

This was a different condition from the original orphaned transport node. I did not remove NSX again. The remaining work was to repair the host certificate registration and restart the proxy once.

First, I retrieved the authoritative API thumbprint from the NSX Manager CLI:

get certificate api thumbprint

The format mattered. My earlier OpenSSL-style, colon-separated value produced server errors. I used the exact colonless thumbprint printed by NSX Manager. From the NSX CLI on nested-esx01, I pushed the host certificate and synchronized the APH certificates:

push host-certificate 192.168.88.61:443 \
  username admin \
  thumbprint <NSX_MANAGER_API_THUMBPRINT> \
  password <NSX_ADMIN_PASSWORD>

sync-aph-certificates 192.168.88.61:443 \
  username admin \
  thumbprint <NSX_MANAGER_API_THUMBPRINT> \
  password <NSX_ADMIN_PASSWORD>

Both commands reported success. I then exited the NSX CLI and restarted the host proxy once from the ESXi shell:

/etc/init.d/nsx-proxy restart

I verified the live state instead of repeatedly restarting it:

nsxcli -c get managers
nsxcli -c get controllers

grep -Ei 'nsx-proxy.*(error|warning)|certificate|unknown ca' \
  /var/log/nsx-syslog.log | tail -n 40

The useful evidence was now present: manager port 1234 was connected, controller port 1235 was connected, both certificates validated, and the controller session was up. The NSX UI briefly continued to report Degraded because host-agent health reporting lagged behind the successful proxy restart.

I considered Sync Transport Node, but it was disabled because the host was already Success/Prepared. That was a clue to stop changing configuration. I left the host alone, allowed the health cycle to update, and refreshed NSX Manager. The stale Degraded state cleared without another cleanup, Configure NSX operation, or proxy restart.

Close  ×

After both affected hosts were healthy, I selected Retry and Proceed with Deployment. The Installer passed Create Transport Node Collection, finished NSX at 94/94, and moved into the management services.

Close  ×

Close  ×

Fixing the VCF Automation Deployment

#

By the next morning, vSphere, NSX, the VCF Management Platform, VCF Operations, and Management Services had completed. VCF Automation was the last milestone. It also produced two different blockers.

Blocker One: The Nested Hosts Were Too Small

#

I initially gave each nested management host 32 vCPUs and 112 GB of memory. That exposed 96 virtual CPUs on a physical server with 16 cores and 32 logical processors, creating heavy contention. I reduced all three hosts to 16 vCPUs, but overlooked VCF Automation’s requirement for a 24-vCPU runtime VM.

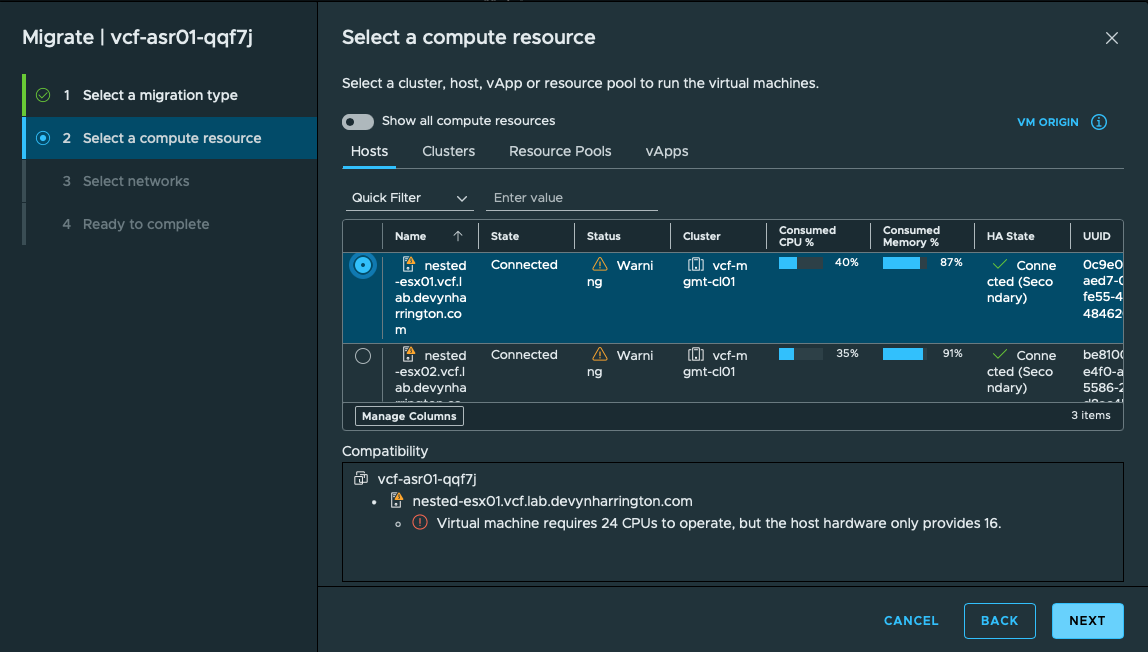

When that VM was created but would not power on, I first ruled out HA. A compute-only migration compatibility check then identified the real problem: every nested host exposed only 16 CPUs, so none could run the 24-vCPU VM.

Close  ×

I started by resizing nested-esx01, giving Fleet a compatible host on which to continue the deployment:

1. In the inner vCenter, put nested-esx01 into maintenance mode.
2. Wait for active migrations to finish and confirm no powered-on VMs remained there.

Close  ×

3. In the outer physical vCenter, power off the nested-esx01 VM.

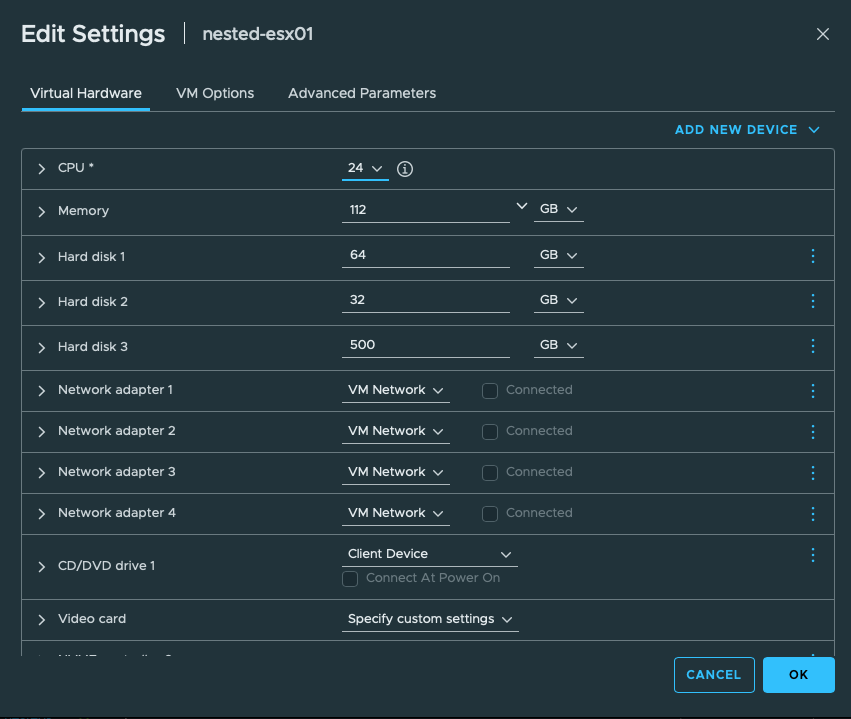

4. Change it from 16 to 24 vCPUs. It remained at 112 GB of memory.

Close  ×

5. Power the nested host back on.
6. Confirm it reconnected to the inner vCenter with 24 logical CPUs.
7. Exit maintenance mode.
8. Let Fleet continue its Automation workflow.

Before Automation finally succeeded, I repeated the maintenance-mode, power-off, resize, and reconnect process for nested-esx02 and nested-esx03. The final management cluster was uniform again, with all three hosts at 24 vCPUs and 112 GB of memory. That gave DRS and HA a compatible destination for the 24-vCPU Automation VM on every host instead of making nested-esx01 its only possible placement.

This was still a lab compromise. Raising all three hosts to 24 vCPUs improved placement flexibility, but the physical host remained heavily CPU-overcommitted. The change solved VM compatibility and removed one more avoidable source of Automation failure; it did not create new physical compute, and it helped explain why the remaining deployment progressed slowly.

Blocker Two: A Stale Services Runtime and an Overlapping Address

#

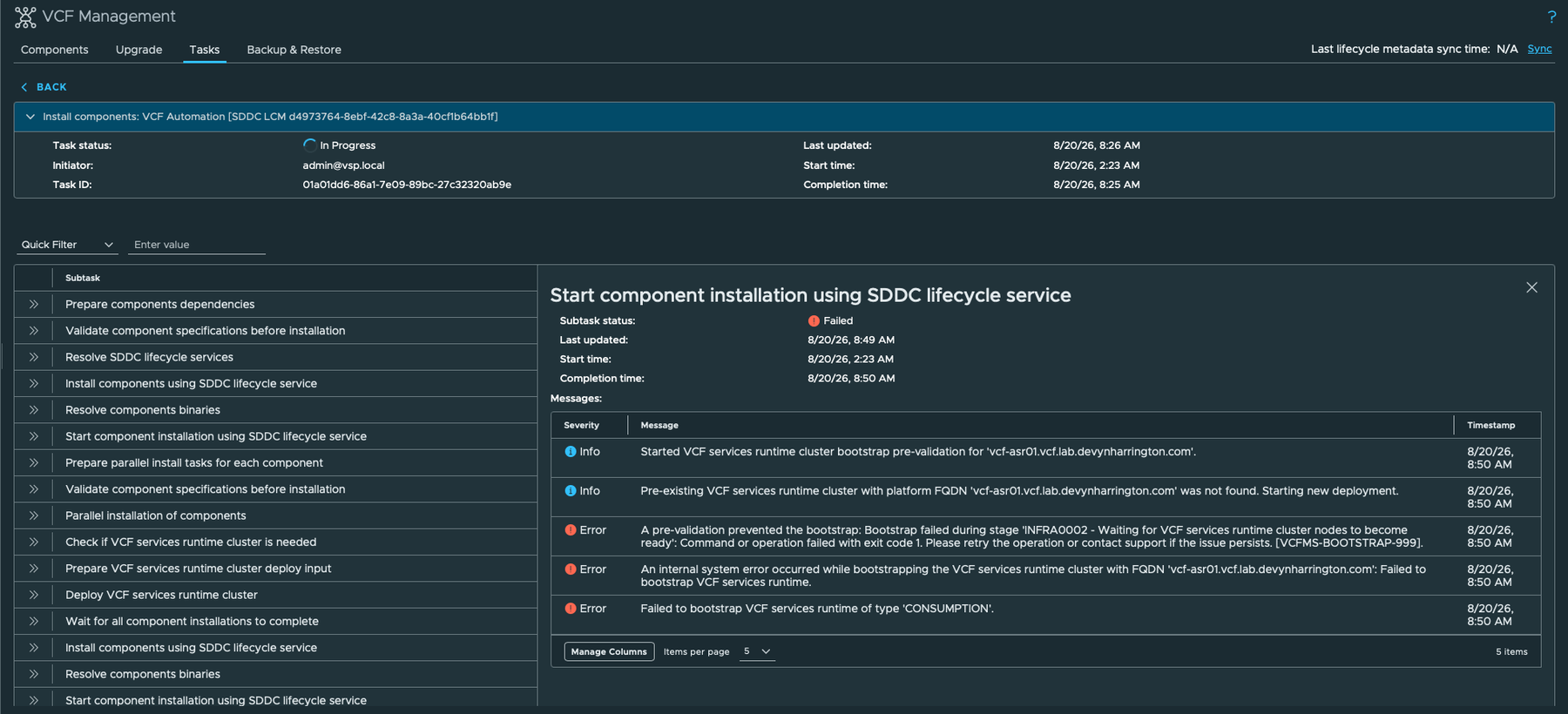

My JSON reserved 192.168.88.224-192.168.88.228 for the Automation runtime nodes, but vcf-asr01.vcf.lab.devynharrington.com also resolved to .224. The platform address therefore overlapped the first address in its own runtime pool. I corrected the DNS record to .223, but the failed deployment had already left stale lifecycle state behind. The Installer surfaced the same class of partial-allocation failure described in Broadcom KB 450292.

Close  ×

After the failure, I manually deleted the partial vcf-asr01-* VM from vCenter, but the next attempt inherited the runtime object and allocation state retained by Fleet and SDDC Manager. Deleting the VM was not the same as removing it from VCF’s lifecycle inventory; the cleanup tool later found the stale VSP cluster record even though the VM was already gone.

I moved vcf-asr01.vcf.lab.devynharrington.com to 192.168.88.223, outside the final .224-.228 runtime pool. DNS alone was not enough because Fleet and SDDC Manager still held a stale VSP cluster record.

Broadcom’s scripted component cleanup guidance in KB 441333 provided the cleanup mechanism. There is also a supported option to skip VCF Automation during initial deployment and add it later, but I ultimately completed it in the original Installer workflow.

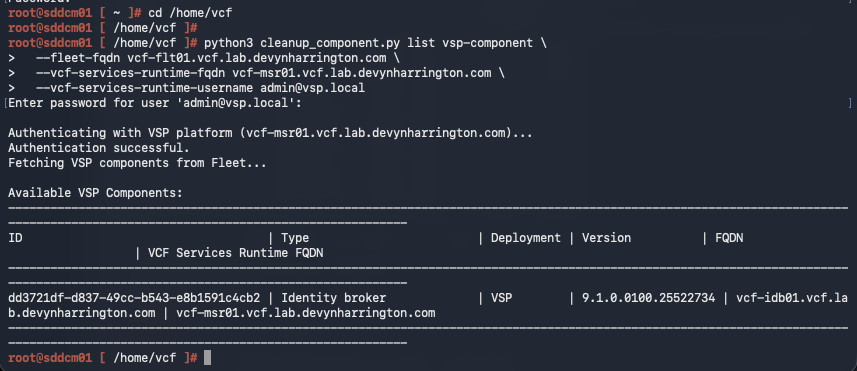

From sddcm01 as root, I first listed the stale runtime. The real ID must be discovered and verified in the environment, not copied from an example:

cd /home/vcf

python3 cleanup_component.py list vsp-cluster \
  --fleet-fqdn vcf-flt01.vcf.lab.devynharrington.com \
  --vcf-services-runtime-fqdn vcf-msr01.vcf.lab.devynharrington.com \
  --vcf-services-runtime-username [email protected]

Close  ×

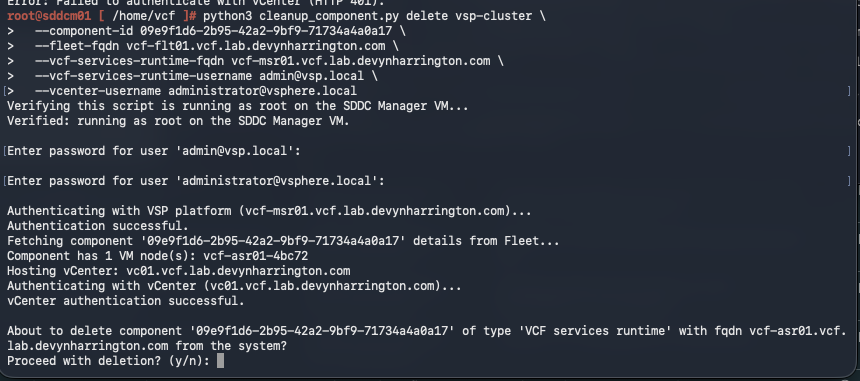

After confirming the ID and FQDN, I deleted that one stale VSP cluster record:

python3 cleanup_component.py delete vsp-cluster \
  --component-id <STALE_VSP_CLUSTER_ID> \
  --fleet-fqdn vcf-flt01.vcf.lab.devynharrington.com \
  --vcf-services-runtime-fqdn vcf-msr01.vcf.lab.devynharrington.com \
  --vcf-services-runtime-username [email protected] \
  --vcenter-username [email protected]

I did not add a force flag. The script authenticated to Fleet and vCenter, described what it intended to remove, and handled the already-missing partial VM while deleting the stale Fleet and platform-database records.

Close  ×

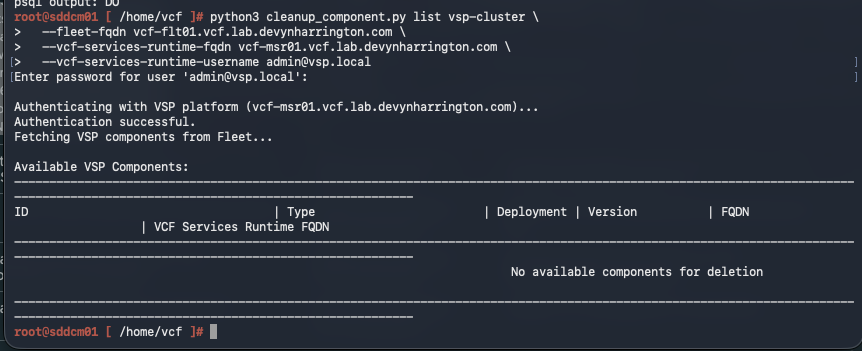

I then reran the list operation and received No available components for deletion.

Close  ×

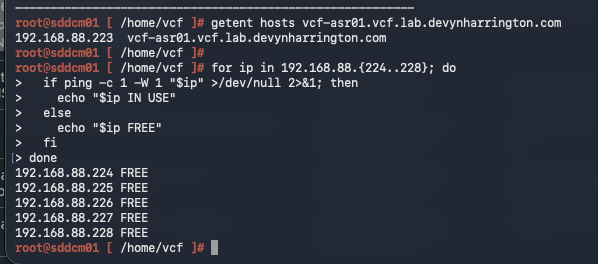

Before retrying, I verified the exact state I wanted:

getent hosts vcf-asr01.vcf.lab.devynharrington.com

for ip in 192.168.88.{224..228}; do
  if ping -c 1 -W 1 "$ip" >/dev/null 2>&1; then
    echo "$ip IN USE"
  else
    echo "$ip FREE"
  fi
done

The runtime FQDN resolved to .223, all five pool addresses were free, no stale VSP cluster remained, no partial vcf-asr01-* VM remained, and the expected services-runtime template stayed in the vcf-automation folder.

This was the point at which I seriously considered tearing down the nested environment and rebuilding it from scratch on the same physical ESXi and vCenter foundation. Automation had become frustrating enough that starting over sounded easier. I decided against it because the environment underneath it was healthy, I had already worked through the much harder NSX recovery, and rebuilding would have meant risking that entire process again. I did not want to solve NSX, reach the last component, and quit. I kept troubleshooting the state that remained instead of discarding the progress I had already earned.

Close  ×

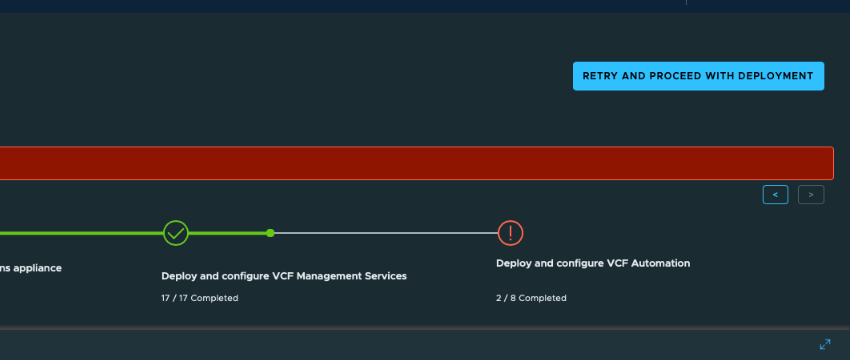

Only then did I click Retry and Proceed with Deployment once. That created a new Fleet lifecycle task instead of attempting to revive the stale one.

Close  ×

Monitoring VCF Automation Without Interrupting It

#

The fresh attempt stayed at the same percentage for a long time. Instead of assuming it was stuck, I checked Fleet and the component logs to see whether work was still moving.

From the VCF Installer, the lifecycle support script showed the current Fleet task status:

/home/vcf/lcm_service_support.sh \
  -u [email protected] \
  -s vcf-msr01.vcf.lab.devynharrington.com \
  -t <FLEET_TASK_ID>

On a VCF Management Services Runtime control-plane node, I used the SDDC Build service logs:

export KUBECONFIG=/etc/kubernetes/admin.conf

POD=$(kubectl get pods -n vcf-sddc-lcm -o name \
  | grep 'vcf-sddc-build-service-sddcbuild' \
  | head -1)

echo "$POD"

For a short view:

kubectl logs -n vcf-sddc-lcm "$POD" --since=20m \
  | grep -Ei 'vcf-asr01|bootstrap|clone|deploy|configure|SUCCESSFUL|COMPLETED|FAILED|ERROR|exception|timeout' \
  | tail -20

For a live view:

kubectl logs -n vcf-sddc-lcm "$POD" -f --since=5m \
  | grep --line-buffered -Ei 'vcf-asr01|bootstrap|clone|deploy|configure|SUCCESSFUL|COMPLETED|FAILED|ERROR|exception|timeout'

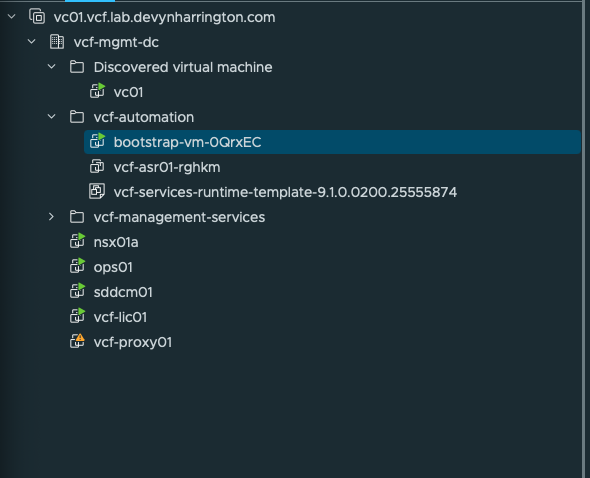

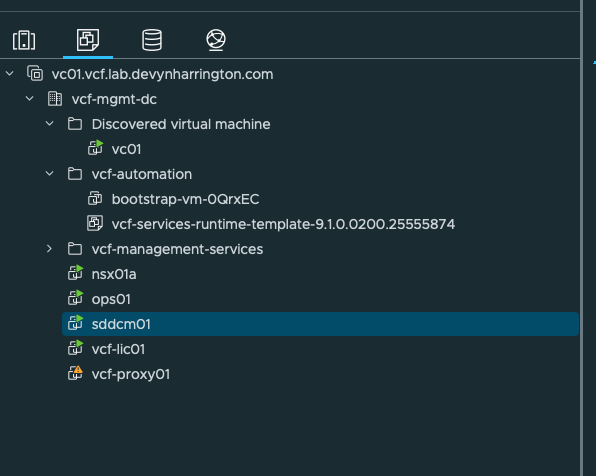

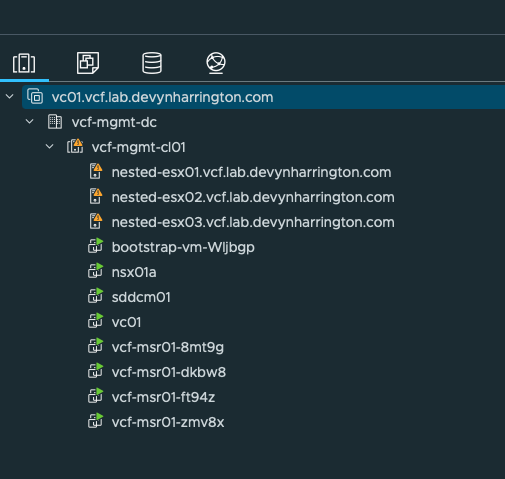

The evidence was healthy even while the UI changed slowly. The support script called the task normal, timestamps advanced, a temporary bootstrap VM appeared, template cloning and power-on tasks completed, a permanent vcf-asr01-* VM appeared, CNS volumes were created and attached, and the workflow remained running with empty error arrays.

Close  ×

Close  ×

VCF Automation is resource-heavy, and the single physical MS-A2 was already contending for CPU and storage. I left the deployment untouched overnight rather than creating another competing retry.

The Successful VCF 9.1 Management Domain

#

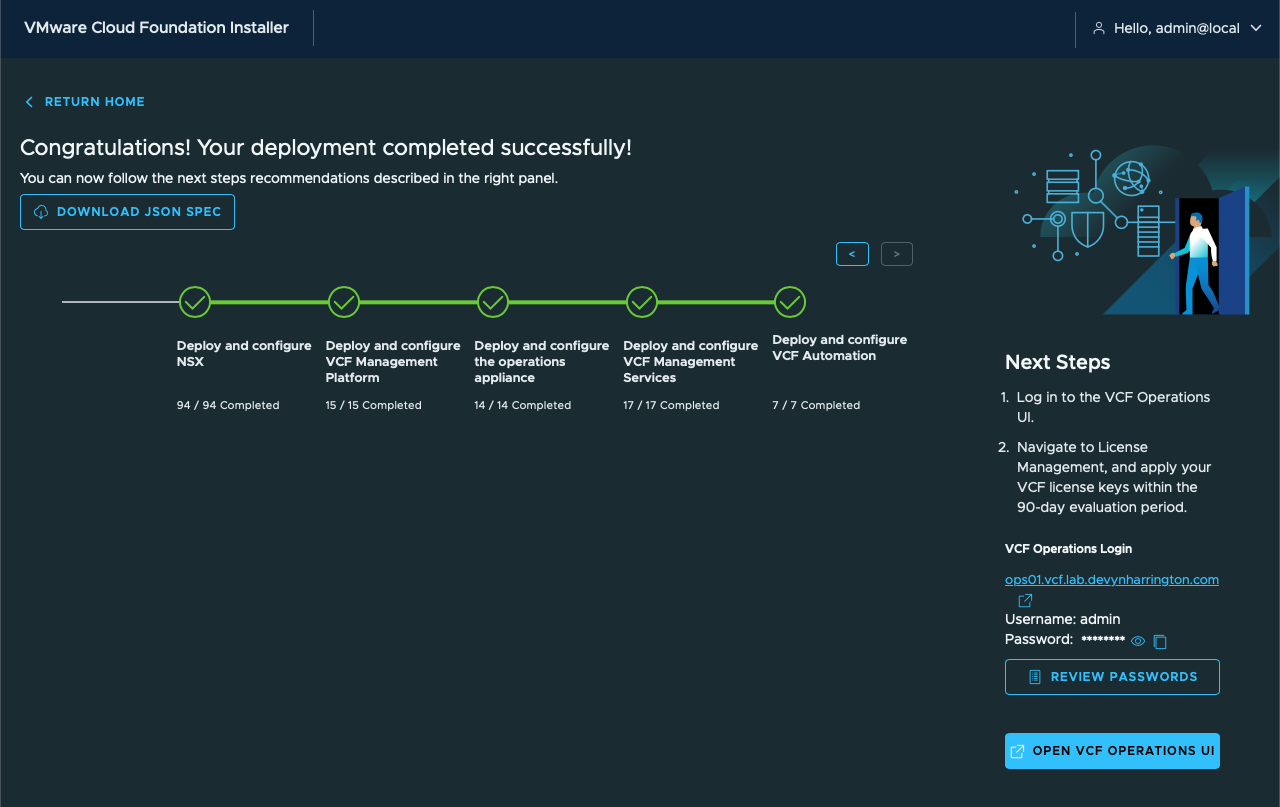

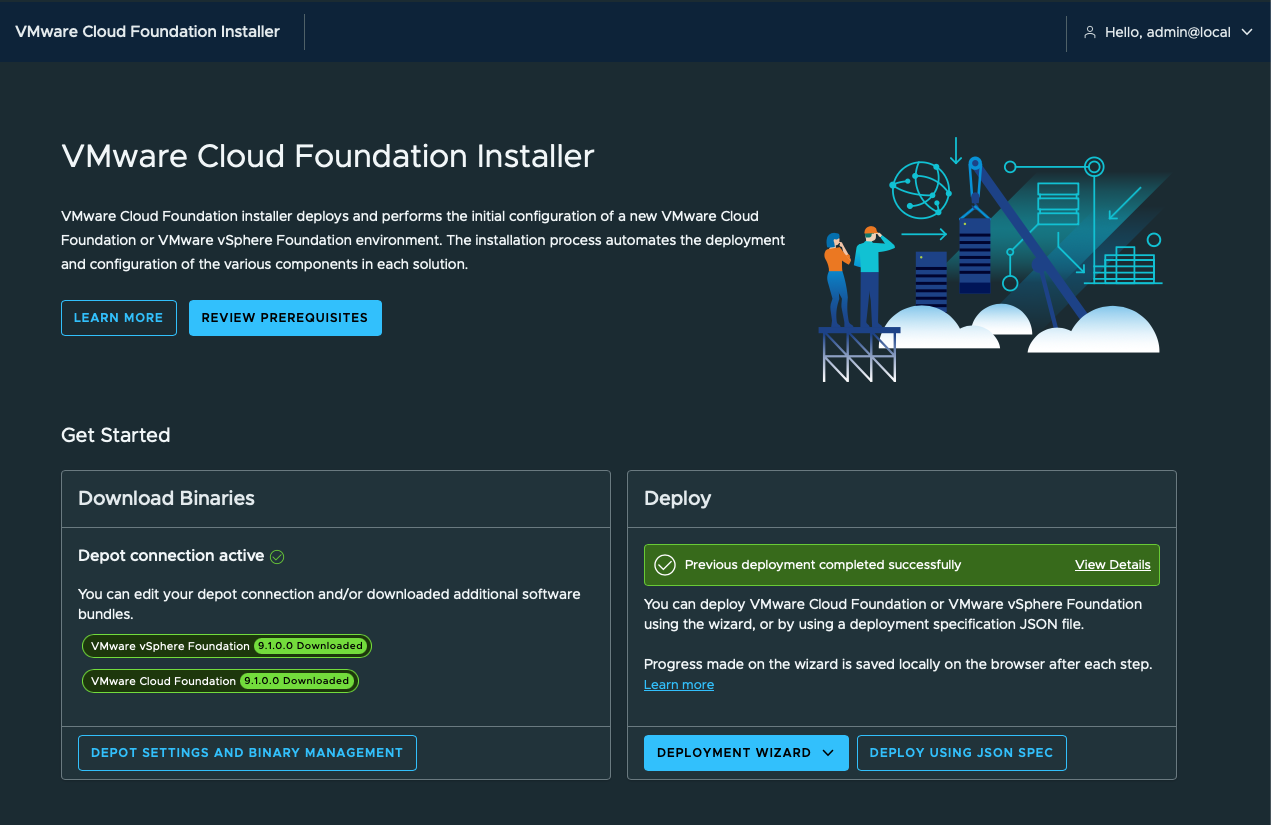

The next morning, the Installer showed VCF Automation, the last remaining component, complete at 7/7. With that, the entire management-domain deployment was successful.

Close  ×

Close  ×

Opening VCF Operations

#

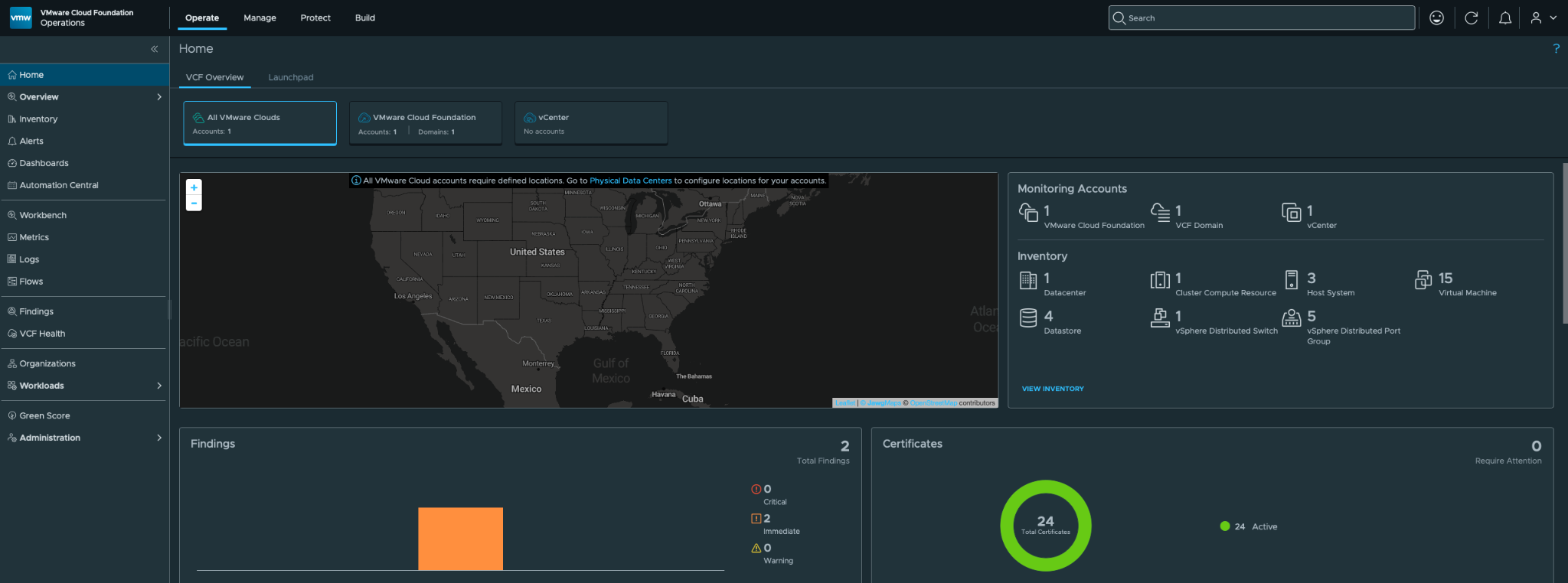

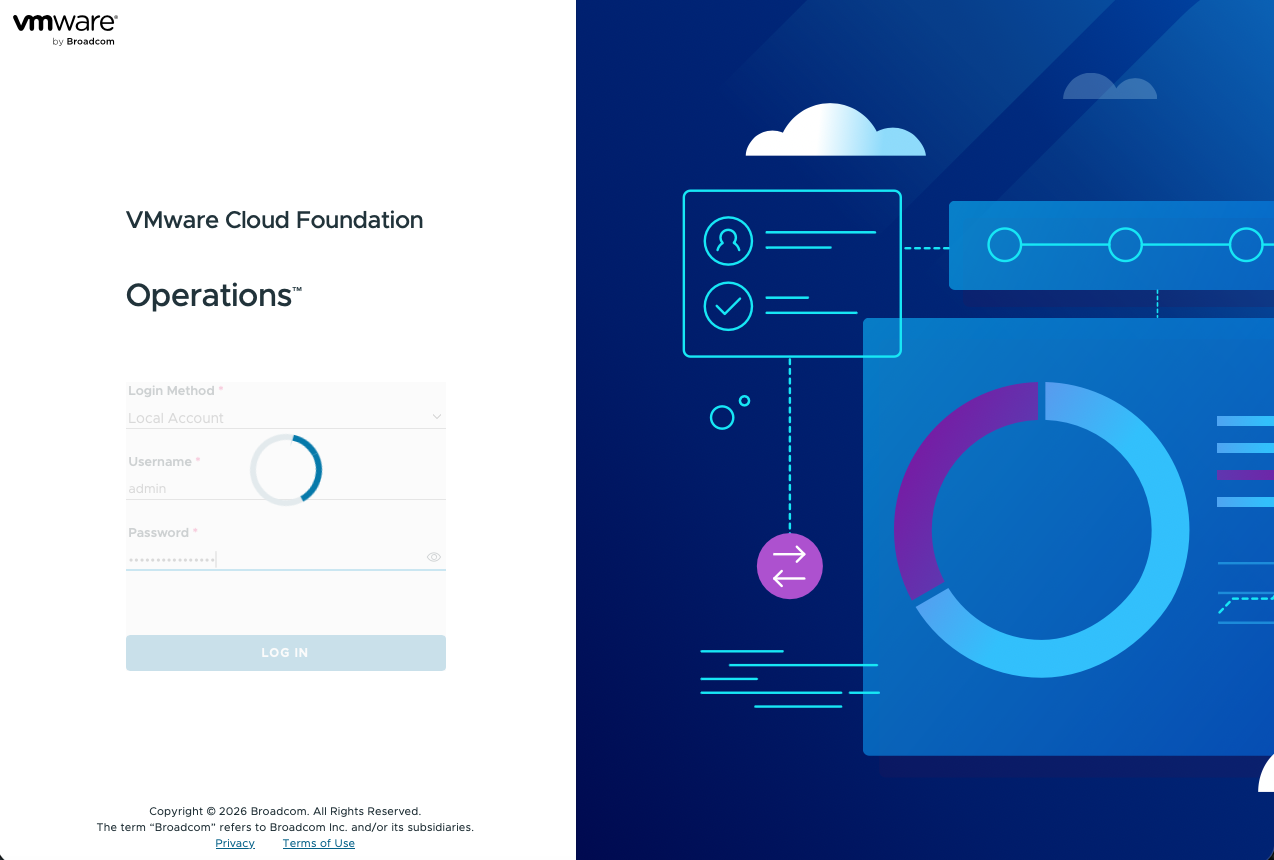

The Operations UI link on the completed deployment opened the VCF Operations login page. After signing in with the account created during bring-up, I landed on the VCF Overview dashboard with the management domain, vCenter, three hosts, datastores, distributed switch, and virtual-machine inventory already registered.

Close  ×

Close  ×

Scripts and Files Used

#

I kept the final deployment JSON as the known-good baseline for my VCF deployment.

You can download the current files from William Lam’s VCF Fleet Automated Lab Deployment repository:

• sample-william-vcf-9.1.0.ps1: the configuration template I customized for my lab.
• vcf-automated-fleet-deployment.ps1: the Fleet deployment script that reads that configuration.
• vcf-automated-wld-deployment.ps1: the workload-domain script I plan to use in the next article.

I kept the customized configuration, both scripts, the Nested ESXi OVA, and the VCF Installer OVA in one project folder. You can store them in different locations, but keeping everything together let me reuse the same base path and made validation and troubleshooting easier. Before sharing a customized configuration, remove all vCenter, ESXi, Installer, SDDC Manager, NSX, Operations, and Automation credentials.

I launched the management-domain workflow with:

./vcf-automated-fleet-deployment.ps1 -EnvConfigFile ./my-vcf-9.1.0.ps1

That workflow created the nested hosts, deployed the VCF Installer, and generated the initial management-domain JSON. I will cover the workload-domain script only after I use it to commission nested-esx04 through nested-esx06 and validate the result.

Lessons Learned

#

• Check forward and reverse DNS before deployment. If the Installer finds a duplicate or missing record, stop and fix it.
• Keep each service address outside the IP pool reserved for its runtime nodes.
• Size every nested management host for the largest VM the cluster may need to run. VCF Automation required 24 vCPUs, so I set all three hosts to 24 to give DRS and HA more than one compatible destination.
• If the percentage stops moving, do not immediately assume the deployment is stuck.
• Check Fleet, Kubernetes, vCenter tasks, and component logs to tell the difference between slow progress and stale work.
• Clean up stale lifecycle metadata before retrying a partially failed component.
• Recover one management host at a time, and make sure it is healthy before moving to the next.
• Save the successful deployment specification as a reference, and keep credentials and certificate thumbprints out of anything you share.

Getting the complete VCF 9.1 management domain running was easily the most satisfying milestone since I unpacked the MS-A2. Next, I will commission nested-esx04 through nested-esx06, build the workload domain, and work toward enabling Supervisor and VKS.
